Omawire — WireGuard tunnels in the Omarchy bar

Connect, switch, import, edit, rename and QR-export WireGuard tunnels from the Omarchy bar — with live traffic, the connection's own numbers, and a warning when a tunnel drops behind your back.

Omawire is an unofficial third-party widget. It is not affiliated with, endorsed by, or connected to the WireGuard project.

Tunnels are NetworkManager connection profiles. The widget lists every WireGuard profile NetworkManager knows about, and importing a .conf file creates one. Switching is exclusive and transactional: the tunnel you pick comes up and every other WireGuard tunnel goes down — but when interface names allow it the new tunnel comes up first, and if anything fails the previously active tunnels are restored, so a broken profile never leaves you without the VPN you had. Non-WireGuard connections (wifi, ethernet, tailscale) are never touched.

No sudo, no root shell. Everything goes through NetworkManager over D-Bus, authorized by polkit — on a stock Omarchy desktop an active local session controls networking without a password, so the widget needs no sudoers rules and never prompts. Unlike wg-quick, NetworkManager does not execute PreUp/PostUp/PreDown/PostDown shell hooks, so a config file is data, not code: importing a malicious config cannot run commands. Configs containing hook directives are rejected with a clear message.

Requirements

• NetworkManager — running (Omarchy default).
• wireguard-tools — only wg is used, to validate keys before import.
• zenity — optional, for the file picker and the config editor. kdialog or yad also work for the file picker.
• wl-clipboard — optional, for importing a config from the clipboard and copying connection details.
• qrencode — optional, for showing a profile as a QR code.
• notify-send (libnotify) — optional, for the toast when a tunnel is deactivated externally.

No new privileges for any of it: everything still runs as your user.

Install

omarchy plugin add https://github.com/glafeara/omarchy-wireguard.git
omarchy plugin enable glafeara.wireguard right

plugin add is interactive by default; add --yes to that command to skip its prompt. The explicit plugin id and right placement make plugin enable non-interactive. The plugin itself is five QML files and one shell script.

Using it

In the bar: left click opens and closes the panel, right click disconnects the active tunnel (or opens the panel when nothing is up), middle click refreshes. The quick VPN toggle is the switch in the panel header, the t key, or the IPC toggle command.

In the panel:

The row under the cursor shows three buttons: the pencil asks whether to edit the config or the name, the QR square opens the code, the trash can deletes. Either answer to the pencil closes the panel — the editor and the rename prompt are windows of their own, and the panel would sit in front of them.

Connected tunnels sort to the top of the list, name breaking ties, so what is up is the first thing you see and the row the grid describes. The cursor follows the profile it was on across that reorder, not the slot it held — connecting a row moves it, and an Enter afterwards must not land on whatever slid into its place. While a tunnel is up the header carries its QR button next to the switch, so sharing the tunnel you are on does not mean finding its row first.

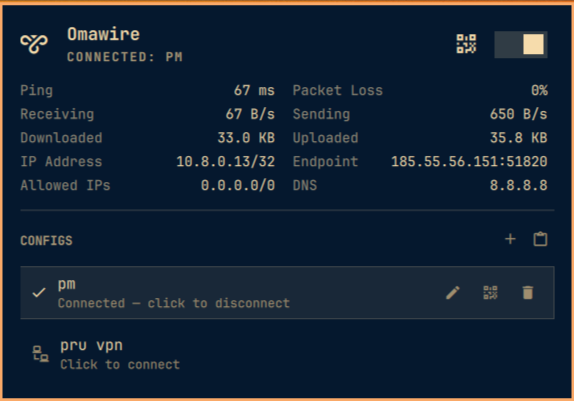

Connection details. While a tunnel is up the panel shows what it is doing, in the same grid the system network widget uses: ping and packet loss, current rates, session totals, the tunnel address, the peer endpoint, the routes it claims and the DNS it sets. Those last four copy on click, and a value too long for its cell shows in full in the tooltip rather than staying behind an ellipsis. Everything but the ping is read from NetworkManager and /sys, and the whole block is live only while the panel is open — a sampled figure with nothing behind it yet, or nothing behind it any more, reads -- rather than 0 B/s. The numbers are activity, not health: WireGuard has no connection state, and an idle tunnel is not a broken one.

The endpoint and the routes belong to the profile's first peer. Most tunnels have exactly one; a profile with several says so under the grid (first of 3 peers), because one endpoint line cannot describe a site-to-site setup and should not pretend to.

Nothing in this widget can bring up two tunnels at once — switching is exclusive — but nmcli, another applet or a profile with autoconnect can. Then the grid describes the first and says which one, since one endpoint and one ping cannot stand for two; the tunnel it leaves out keeps a compact traffic line of its own in the list below (↓ 3.0K/s ↑ 14.8K/s · ↓ 2.6M ↑ 1.1M). The one in the grid does not — the same four numbers twice on one screen is noise.

The ping is an ICMP probe bound to the tunnel device, so it measures the path the tunnel actually routes rather than your physical link — it is the one thing here that leaves your machine. It goes to 1.1.1.1 by default, every three seconds while the panel is open, ten samples to a window; set pingHost to something inside your tunnel, or to an empty string to switch the probe off. A split tunnel that does not route the ping host shows -- rather than a scary 100%. Unprivileged: Omarchy leaves ping sockets open to all users, so nothing here needs CAP_NET_RAW.

Importing asks for a name, because the interface is named after it and the kernel only accepts up to 15 characters of [A-Za-z0-9_=+.-] — provider files like US-New York 03.conf do not qualify. The name doubles as the replace-or-not decision. Imported profiles never auto-connect; a tunnel comes up only when you say so.

Switching is transactional. With distinct interface names the new tunnel comes up before the old ones go down (the kernel is fine with several wg interfaces at once); with a shared or unset interface name the order has to be down-then-up, and a failed activation rolls back to what was active before. The panel tells you which of the three outcomes you got: switched, "the previous tunnels were restored", or — if the rollback itself failed — a plain statement that the state is unknown. A successful activation confirms NetworkManager's state, not the peer's reachability: WireGuard has no connected/disconnected handshake state to report.

Replacing a profile during import is transactional too. If NetworkManager refuses deletion of the old active profile and also refuses its rollback, the operation reports that the state is unknown (backend exit 6) instead of implying that only the deletion failed. Both the old and fully built replacement profiles are retained for manual recovery; the error names their UUIDs rather than discarding the only new configuration. Exit 6 also marks a failed cleanup of an incomplete replacement, so editor saves never retry automatically on top of a profile that NetworkManager refused to remove.

Renaming changes the profile's display name (connection.id) only — spaces are fine, duplicates are refused. The interface name never changes; that one obeys kernel rules and belongs to import. The prompt opens in its own window, centred on the screen like the QR code, and the panel closes behind it; Esc or a click outside cancels.

QR export (q, the row's QR button, or the header's while a tunnel is up) renders the profile as a QR code in its own window, centred on the screen — the panel closes, so nothing sits between the code and the phone's camera. Esc, q or a click outside closes it. The PNG lives in XDG_RUNTIME_DIR (tmpfs, mode 0600) and is deleted the moment the window closes. Mind what the code contains: the private key. Scanning it moves the profile, it does not add a device — a WireGuard server tracks one endpoint per key, so two devices sharing a profile kick each other offline on every handshake. File export exists too, IPC-only: exportConfig below writes a 0600 .conf atomically.

Notifications. When a tunnel is deactivated by something other than this widget — nmcli in a terminal, a NetworkManager restart, a dying network — the bar icon turns urgent and one toast says "Profile X was deactivated". Disconnects you asked for stay silent, and several widget instances (one per monitor) coordinate through a lock so you get one toast, not one per screen.

Editing closes the panel and shows the connection as wg-quick-style text in zenity's text view — reconstructed from NetworkManager, secrets included. Saving unchanged text does nothing; saving over a running tunnel rebuilds the profile and brings the tunnel back up on it. Text rejected by validation is handed back to the editor rather than thrown away.

Validation. Every incoming config — file, clipboard or edit — is parsed key by key. Keys must pass wg pubkey, which catches the truncated base64 copy-paste produces. Supported: Address, DNS, ListenPort, MTU, FwMark, Table, and per peer PublicKey, PresharedKey, AllowedIPs, Endpoint, PersistentKeepalive. Hook directives and unknown keys are rejected outright — with this backend they would never run, and silently dropping them would lie about what the tunnel does. A rejected import changes nothing: the profile you had and the tunnel you were on stay as they were.

Settings

omarchy bar set glafeara.wireguard refreshIntervalSec 30
omarchy bar set glafeara.wireguard pingHost ""     # no latency probe

IPC

omarchy-shell glafeara.wireguard status                  # "VPN: kz" / "VPN disconnected"
omarchy-shell glafeara.wireguard details                 # the panel's grid on one line
omarchy-shell glafeara.wireguard toggle                  # connect/disconnect the last used tunnel
omarchy-shell glafeara.wireguard down                    # disconnect everything
omarchy-shell glafeara.wireguard refresh
omarchy-shell glafeara.wireguard open                    # also: close, show, hide
omarchy-shell glafeara.wireguard importConfig /path/to/tunnel.conf
omarchy-shell glafeara.wireguard edit kz
omarchy-shell glafeara.wireguard importPick              # opens the file picker
omarchy-shell glafeara.wireguard importPaste             # imports from the clipboard
omarchy-shell glafeara.wireguard rename kz kz-home       # display name only
omarchy-shell glafeara.wireguard exportConfig kz ~/kz.conf   # 0600, private key inside
omarchy-shell glafeara.wireguard qr kz                   # QR window, centred on screen

Commands that start an asynchronous action return ok only when it has actually been accepted. Control actions reject another running control action; picker, clipboard import, QR and export reject only their own already-running worker, while an editor may open during a control action and queues its save. An editor rejects a second editor or a queued editor save. rename to the current name is an idempotent ok. Name-based commands refuse an ambiguous name and list the matching UUIDs instead — pass a UUID to disambiguate. details answers with the addresses whether or not the panel is open, and with -- for everything sampled — rates, totals and ping — because sampling stops with the panel. A figure older than ten seconds reads -- too: a stale total is a wrong total, not an old one.

What it touches

• NetworkManager connection profiles of type wireguard — lists them, activates and deactivates them, creates one per import, deletes only what you explicitly delete. Secrets live in NetworkManager's own root-owned storage under /etc/NetworkManager/system-connections/.
• ~/.local/state/omarchy/wireguard-last — the UUID of the last tunnel you connected, so the bar's quick toggle reconnects what you actually used.
• $XDG_RUNTIME_DIR/omarchy-wireguard.<uid>.{lock,intent,notified} — the cross-instance lock, the short-lived "this deactivation was ours" markers behind the notifications, and the toast cooldown stamp. The backend requires a private, current-user runtime directory (or its safe /run/user/<uid> fallback) and refuses to use /tmp. These files are private and gone at reboot.
• $XDG_RUNTIME_DIR/wg-qr.<shell-pid>.*.png — the QR image while its window is open; deleted on close. On the next shell startup, images whose owner PID is dead are safely reaped without touching another live monitor's QR.
• $XDG_RUNTIME_DIR/wg-edit.<shell-pid>.* — private editor buffers and result files while zenity is open; deleted on every editor exit and reaped on the next shell startup after a crash.
• /sys/class/net/<iface>/statistics/{rx,tx}_bytes — read-only, for the traffic line, plus the interface's address and MTU for the detail grid.
• One ICMP echo to pingHost every three seconds while the panel is open, bound to the tunnel device — the only traffic the widget originates, and the only part of it you can switch off in the settings.

Everything runs as your user; authorization is NetworkManager's stock polkit policy. Private keys are passed to nmcli on stdin, never as command-line arguments — and the detail query runs nmcli without -s, so it never reads a secret in the first place. No install or uninstall scripts, no services, no telemetry.

Tests

tests/ holds backend suites that run against fake nmcli, wg, and qrencode commands on PATH — the only way to exercise the switch rollback paths, since a dead endpoint does not make nmcli connection up fail — plus a manual checklist (tests/checklist.md) for what needs real tunnels:

bash tests/run.sh

Uninstall

omarchy plugin remove glafeara.wireguard

That disables the widget and deletes the plugin directory. Your tunnels stay in NetworkManager — remove them with nmcli connection delete <name> if you want them gone, and:

rm -f ~/.local/state/omarchy/wireguard-last

License

MIT — see LICENSE.

Trademarks

"WireGuard" and the "WireGuard" logo are registered trademarks of Jason A. Donenfeld. See wireguard.com. Omawire is an independent third-party widget: it uses the name only to describe which tunnels it manages, carries none of the project's branding, and is neither affiliated with nor endorsed by the WireGuard project. The MIT licence above covers this widget's own code and grants no rights in anyone else's trademarks.
