Omaguard

🛡️ Mullvad VPN widget for the Omarchy Quattro bar — real tunnel state, one-click connect, and server switching.

Omaguard is a native Quickshell plugin for Omarchy 4's bar. It reads tunnel state from mullvad-daemon as a push stream, not a polling loop, so a mullvad disconnect typed in another terminal shows up in under a second. It never asks for a password, never needs root, and answers the question a status dot cannot: is my traffic actually leaving through the tunnel?

Features

• Live tunnel state. The daemon pushes one JSON event per change; a backoff supervisor reconnects the stream when the daemon restarts, and a periodic reconciliation corrects drift if it ever dies silently.
• Real exit verification. The panel distinguishes connected and confirmed from connected but leaking from cannot tell yet — an interface being up does not prove traffic flows through it.
• One-click connect, with an optimistic toggle that reacts before the daemon confirms. No password prompt, ever: the Mullvad CLI talks to its daemon over a socket.
• Server switching with search across 91 cities, each showing how many relays it has. Selecting one sets the constraint and brings the tunnel up in the right order.
• Account login in the panel. The account number travels over stdin, is cleared the instant the daemon receives it, and is never logged, displayed, or written to disk.
• A world map marking where your traffic surfaces, drawn as a dot grid in your theme's colours. Rendered from a grid generated offline — nothing is fetched at runtime.
• Details while connected: active protections (quantum resistance, DAITA, multihop), endpoint and protocol, tunnel interface, and bytes transferred.
• Degrades honestly. With no CLI, no daemon, or no account, it says which one is missing and how to fix it — and the icon never claims "disconnected" for a state it cannot observe.
• Speaks your language. English by default, Brazilian Portuguese when the system asks for it, and adding a language means adding one file.

Reference guides

• Architecture — state flow, update layers, credential handling, process discipline
• Decisions — why the Mullvad CLI over plain WireGuard, why a stream over polling, what was left out
• Mullvad CLI surface — verified command output with real samples, the source of truth for the parser
• Development — dev cycle, validation, Quickshell traps, manual verification script

Requirements

• Omarchy 4.x (Quattro), where the bar is a Quickshell plugin
• mullvad-vpn-daemon — the CLI and daemon, without the Electron app

sudo pacman -S mullvad-vpn-daemon
sudo systemctl enable --now mullvad-daemon

No terminal login needed: the panel has a field for the account number.

Install

omarchy plugin add https://github.com/JustSpica/omaguard.git --enable

Omarchy clones the repository into ~/.config/omarchy/plugins/io.github.justspica.omaguard/, validates the manifest before trusting it, and — with --enable — asks which bar section to place the widget in and writes the entry for you.

Drop --enable to install without touching the bar, then place it later:

omarchy plugin enable io.github.justspica.omaguard --section right
omarchy plugin disable io.github.justspica.omaguard
omarchy bar move io.github.justspica.omaguard --before omarchy.network

Updating and removing

omarchy plugin update io.github.justspica.omaguard    # fetch, show the diff, re-validate
omarchy plugin remove io.github.justspica.omaguard    # uninstall

update only fast-forwards, re-validates the manifest afterwards, and rolls the checkout back if the new revision fails validation — a broken push upstream cannot leave you with a broken bar.

What gets installed

The repository is the plugin folder: manifest.json sits at its root because the clone lands directly in the plugins directory, with no subdirectory in between. docs/, test/, and screenshots/ come along and are never loaded.

Plugins run as unsandboxed code inside the long-lived omarchy-shell process, which is why omarchy plugin add prints a warning and asks for confirmation. Read the source before you enable anything — this one included.

Usage

The bar icon

The icon is a shield that reports four things at a glance — compare it across the screenshots on this page: struck through above, filled below, badged further down.

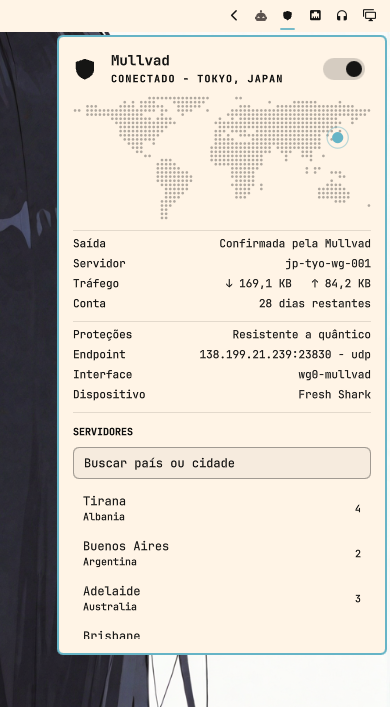

The panel

The map marks where your traffic surfaces, and the marker's colour carries the meaning: accent for the relay the tunnel exits through, plain for your own location while disconnected, and urgent when traffic is leaving outside the tunnel.

Rows come in two groups — connection first, then technical detail — and appear as they become knowable. State and location are absent on purpose: the hero above already reads CONECTADO · TOKYO, JAPAN. The panel scrolls when the content outgrows it.

Saída is the row worth understanding: it reads Confirmada pela Mullvad when the daemon confirms the exit IP belongs to Mullvad, Fora do túnel when it does not, and Verificando while a transition is in flight — never guessing a leak from a missing field.

Servidores lists cities rather than individual relays: the daemon already balances load within a city, and 91 entries stay navigable where 574 would not. Type to filter by country or city; picking one sets the constraint and then connects or reconnects, depending on the current state.

With the panel open and the tunnel up, Tráfego polls the interface counters every 3 seconds. With the panel closed, that costs nothing.

Signing in

With no account, the panel collapses to a single question. The number is masked as you type, goes to the daemon over stdin, and is discarded the moment it is sent. Everything else stays hidden until there is an account to act on — the widget never offers a control it cannot honour.

From the command line

omarchy-shell io.github.justspica.omaguard status
omarchy-shell io.github.justspica.omaguard toggleVpn
omarchy-shell io.github.justspica.omaguard connect
omarchy-shell io.github.justspica.omaguard disconnect
omarchy-shell io.github.justspica.omaguard refresh

Handy for Hyprland keybindings. status returns JSON:

{"phase":"disconnected","location":"Canoas, Brazil","exitIsMullvad":false,"loggedIn":true,"daysLeft":28}

The action commands return ok, busy, or the reason they were refused (cliMissing, daemonDown, noAccount, checkingAccount) — they never report success for something that did not run.

Languages

The widget follows the system locale, falling back to English:

Tags are matched exactly, in xx_YY form. pt or pt_PT resolve to English rather than to pt_BR — a near-miss language reads worse than no translation. The locale is resolved once when the plugin loads, so a language change takes effect on the next omarchy restart shell.

Adding a language is two steps:

1. Copy locale/en_US.js to locale/<xx_YY>.js and translate the values.
2. Register it in the CATALOGS map at the top of I18n.js.

node --test 'test/*.test.js' then fails if the new catalogue is missing any key, or if a plural entry lacks its one/other forms. Missing keys fall back to English silently at runtime, which is why the test exists.

Configuration

Inline keys on the widget's shell.json entry:

{ "id": "io.github.justspica.omaguard", "reconcileIntervalSec": 60 }

How it works

State is pushed, not polled. mullvad status --json listen emits one JSON line per event for as long as the daemon lives. Three layers keep that honest: the stream itself, a backoff supervisor that reconnects from 1 s to a 30 s cap, and a reconciliation snapshot that corrects drift.

The exit code is not an error channel. The Mullvad CLI exits 0 even with no account and no relay list, so output content is the only reliable signal. Every parser returns one of three shapes — parse failure, no data, or valid data — and that distinction is what keeps a gRPC error from being read as a logged-in account.

The account number is the only credential Mullvad has. It is masked on screen, sent over stdin rather than argv where any ps could read it, cleared from memory right after the write, and never persisted. A test asserts that no parsed field can carry it.

docs/architecture.md covers all of this in depth.

Development

git clone https://github.com/JustSpica/omaguard.git ~/.config/omarchy/plugins/io.github.justspica.omaguard

A cloned plugin is a real directory, so edits reload on save.

node --test 'test/*.test.js'                # parsing, against real fixtures
omarchy plugin validate .                   # manifest, from the repo root
journalctl --user -f | grep "io.github.justspica.omaguard"

Parsing lives in Model.js with no QML import, which is what makes it testable outside a running shell — everything else needs eyes on the panel. See docs/development.md for the manual verification script and the Quickshell traps worth knowing.

Layout

manifest.json        id, kinds, entryPoints, and the settings schema
Panel.qml            bar icon, panel, login, details
Service.qml          event stream, backoff, reconciliation, actions
RelayPicker.qml      city search and list
WorldMap.qml         dot-matrix world map with the relay marker
MapData.js           the map grid, generated by tools/
TrafficCounters.qml  interface byte counters, read from sysfs
Model.js             pure parsing — no QML, testable in Node
MullvadIcon.qml      vector shield
I18n.js              translation lookup, plural forms, locale resolution
locale/              one catalogue per language (en_US, pt_BR)
test/                Model tests and real CLI fixtures
tools/               regenerates MapData.js from a borders GeoJSON
docs/                architecture, decisions, CLI surface, development
screenshots/         images used by this README

Conventions

Documentation, code comments, test names, and commit messages in English; Conventional Commits with scope (feat(plugin):, docs:). User-facing strings live in locale/, never inline in the source.

The full rules for agents live in AGENTS.md — that is the canonical file; do not duplicate rules in this README.

License

MIT.
