Browser minimap

A live mirror of whatever agent-browser is looking at, pinned under the bar on the focused output. It appears when a coding agent starts driving a browser and steps aside when it stops.

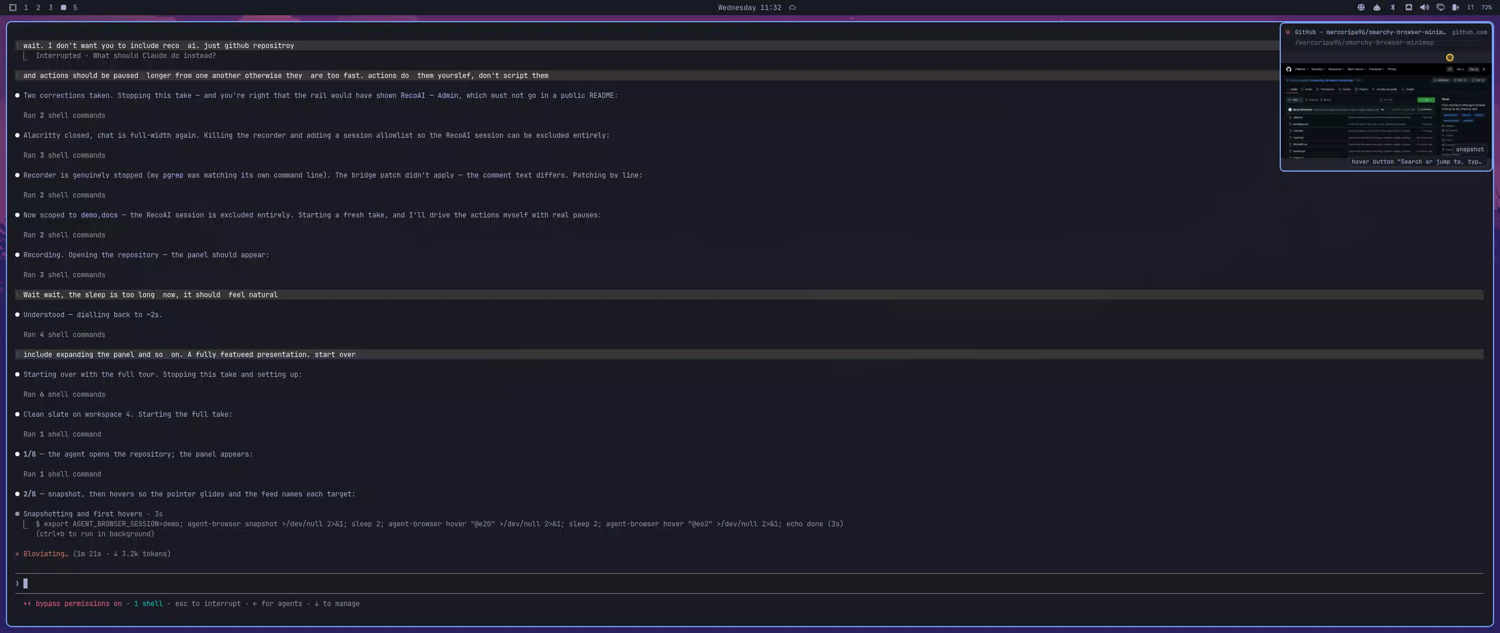

An agent opens this repository, snapshots it, moves over a few elements, takes a screenshot, and the panel expands — all watched from the corner of the desktop.

What you are looking at

The panel sits under the bar on the focused output. The recording light beside the title is lit while the page is painting, the yellow marker is where the agent just acted, and the stack in the corner names the last few actions.

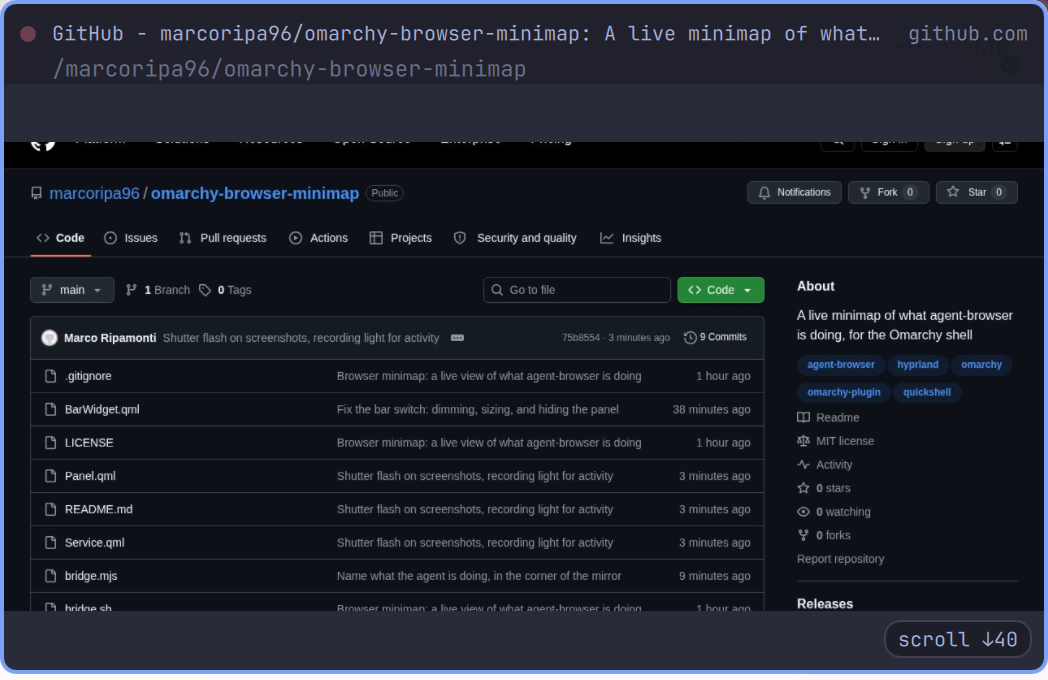

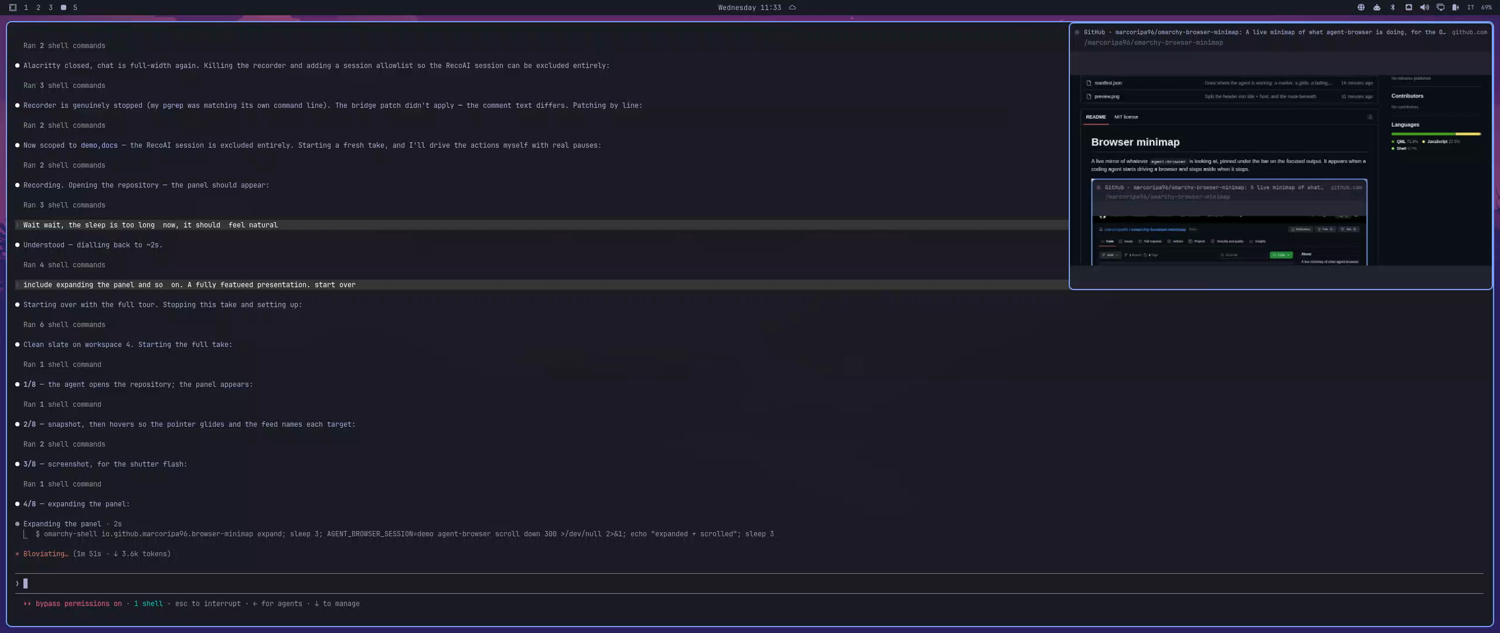

Left-click to expand it — here it is mirroring this repository's own README.

When more than one agent-browser session is live, a rail lists them by page title. Click one to watch it.

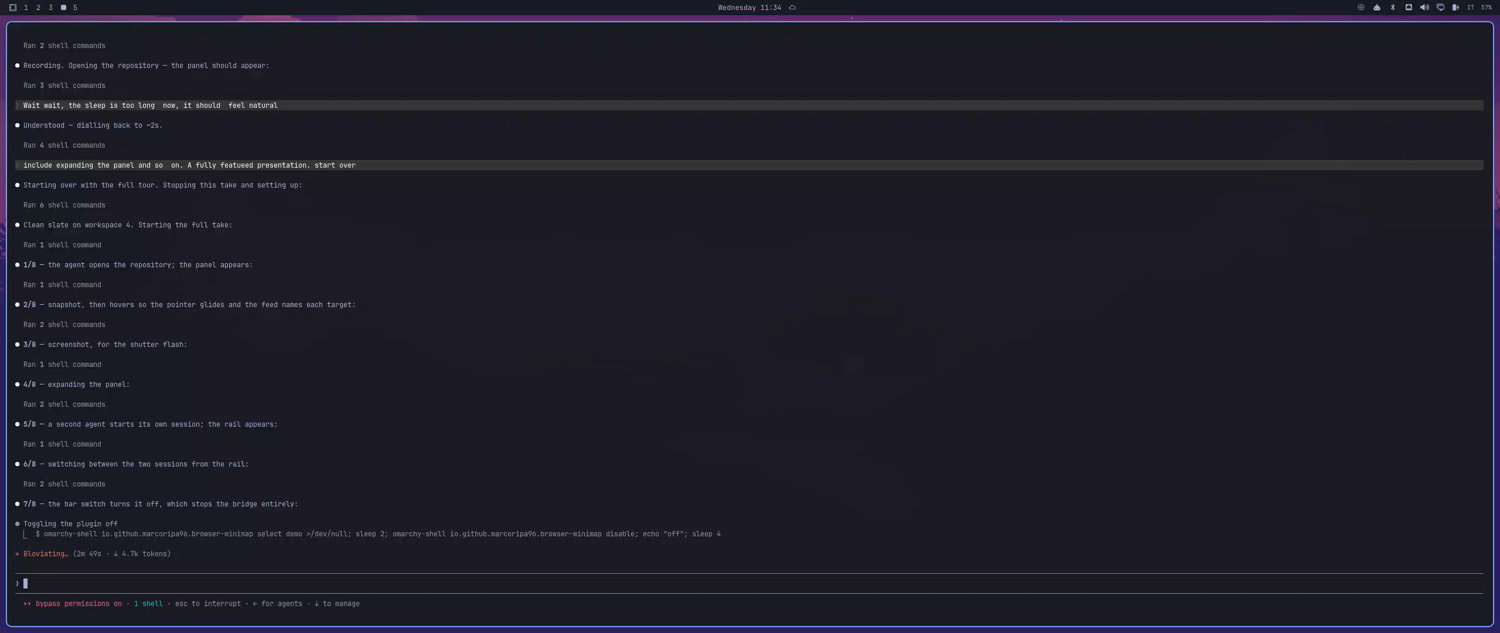

The globe in the bar turns the whole thing off: the panel goes, the bridge process exits, and nothing is left running but that icon.

The header splits the page across two lines: its title with the host beside it, and the route on its own underneath. One long URL buries both the "which site" and the "where in it", and those are the two questions you actually ask of a minimap. The route elides from the left so the tail — the id an agent just navigated to — survives.

Installing

omarchy plugin add https://github.com/marcoripa96/omarchy-browser-minimap.git --enable

That is the whole install: the panel starts watching, and the switch lands in the right-hand side of the bar. Pass --section left|center to put it somewhere else, or drag it once it is there.

How it works

agent-browser runs a WebSocket screencast server per session and advertises the port in a file:

$XDG_RUNTIME_DIR/agent-browser/<session>.stream    ->  e.g. 39747

The bridge — a small Rust daemon, source in bridge/ — watches that directory, connects to every session it finds, and prints one JSON state line per change on stdout. Service.qml owns that process and all the state derived from it; Panel.qml renders it and BarWidget.qml switches it. Nothing polls the agent, and nothing needs the browser to be headed — the stream works fine against a headless Chrome.

Frames arrive as base64 JPEG. The bridge writes them to $XDG_RUNTIME_DIR/omarchy-browser-minimap/frame-{a,b}.jpg rather than piping them through stdout, alternating the two names so the QML Image sees a URL that actually changed. Two Image elements double-buffer the result: the back one decodes off-screen and only becomes the front once it reports Ready. A single Image with cache: false blanks itself between loads, which reads as a flicker at any usable frame rate.

Several sessions at once

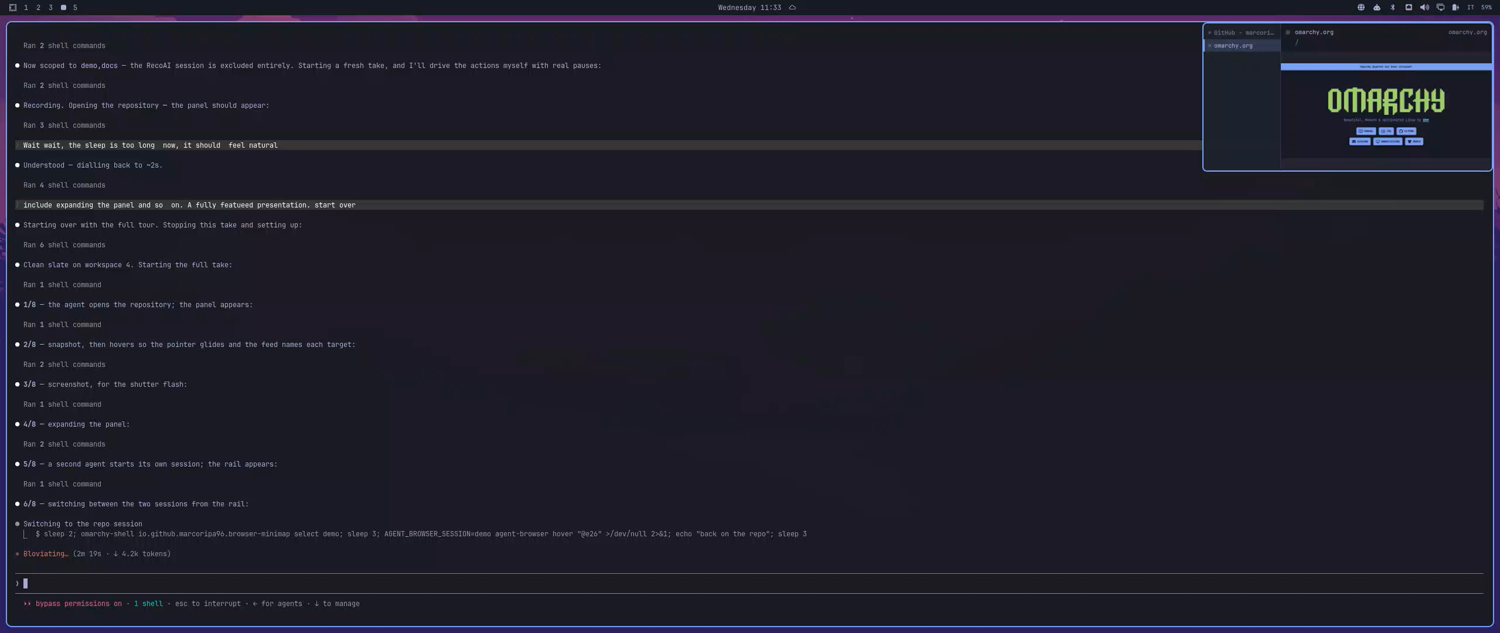

Every connected session is tracked, but only one is mirrored at a time. With more than one live, a rail appears down the left of the card listing them by page title — what you actually recognise a session by, rather than the default/docs names agent-browser uses internally. Each row carries a dot that lights up while that session's page is painting, so you can see a background agent working without switching to it.

Click a row to watch that session. Until you click, the minimap follows whichever session painted most recently, which in practice means a page that animates on its own wins over one that is merely being worked on — clicking is how you say which one you actually care about. auto over IPC goes back to following the busiest.

The rail is a fixed width (railWidth, default 132) and extra width rather than a slice out of the mirror: the page keeps the size you asked for, the card grows to hold the list, and a title too long for the rail is cut with an ellipsis instead of wrapping or stretching the card.

What the agent is doing

agent-browser broadcasts every command it runs to passive stream clients, so the bridge can name each action without polling anything or issuing a single command back into a session an agent is in the middle of driving. Actions appear as a short stack in the bottom right of the mirror, newest at the bottom, and fade after actionTtlSec.

Most of what an agent clicks is described in words, because its locator commands carry the text they searched by:

click “More information”     find text "More information" click
click button “Accedi”        role=button[name="Accedi"]
type into “Search”           find label "Search" fill ...
click submit                 find testid submit click
click link                   find role link click
click #login-button          a bare CSS selector has nothing human in it
hover link “The ISO”         a snapshot ref, named from the snapshot's ref table
click element                a ref from before the bridge saw any snapshot
press Enter · scroll ↓120

The dot beside the page title is a recording light: red and slowly breathing while the page is changing, dark and still when it is not. The session rail carries the same light per session, without the breathing — three pulsing dots in one small panel is noise, not information.

Typed values are never shown. fill and type carry the text being entered, which is where passwords and tokens go, so the feed names the field and stops there. Evaluated JavaScript is reported as eval for the same reason.

Where the agent is working

A marker glides to each place the agent acts, leaving a trail that fades behind it. The endpoints are real; the movement between them is not. agent-browser reports what an action targeted, never a path taken to it — there is no cursor to observe, because synthetic input has no travel. So the marker is told where to be next and animates there, which is the honest way to show a sequence of positions.

Positions come from three places, in descending order of directness:

• raw mouse move and mousedown carry x/y outright;
• a snapshot ref (@e5) or a plain CSS selector is resolved to its box with one read-only get box query;
• Playwright's text= and role= engines, and the getby* locator commands, cannot be resolved at all — those actions are named in the feed but not drawn.

Refs are the common case, since agents work by taking a snapshot and clicking what it returned, and the daemon keeps a session's refs so a separate query can resolve them.

The marker does not follow the theme accent. It sits on top of arbitrary web pages rather than on the shell's own surfaces, so it wants a colour that stays legible over a white page and a dark one alike and that a site is unlikely to be using for its own chrome.

This is the one feature that issues commands into a session an agent is driving. They are read-only box queries, one per action, at most one in flight per session, and they are filtered back out of the feed so the plugin never reports its own plumbing as agent activity. Set showPointer to false and the bridge goes back to issuing nothing at all.

A screenshot gets the shutter: the frames themselves look identical before and after, so without it the one action that takes something away with it would pass unmarked. pdf fires the same flash.

An action also counts as activity in its own right: a click that opens a menu three frames later brings the panel up immediately rather than waiting for the page to repaint.

When it shows and when it goes away

There is no single clean "the agent is done" signal, so three rules cover it:

1. The page stopped changing. After idleHideSec (default 8) with a still viewport, the minimap fades out. This is the common case: CDP stops sending frames entirely for a static page, so a finished navigation goes quiet within a second.
2. The page never stops changing. Live consoles, spinners and ticking clocks repaint forever and would otherwise pin the minimap up permanently, so maxVisibleSec (default 45) caps a single stretch of visibility.
3. Something happened. A navigation, a session switch, or the first change after a quiet spell starts a new stretch and brings it back.

Right-click dismisses the current stretch by hand; rule 3 still returns it. Closing the browser session hides it immediately.

The bridge hashes each frame payload and drops byte-identical ones, so a screencast that keeps ticking over an unchanged page does not read as activity.

Controls

The bar glyph shows one thing only: white when the plugin is on, dimmed grey when it is off. Whether a page is currently painting shows on the panel's own dot and in the icon's tooltip, not in the bar colour — an icon that also turned red while busy made the most active state look like the alarm state, and left "off" and "on but idle" separated by nothing but opacity.

Switching the plugin off hides the minimap immediately, whether or not it was on screen at the time.

Off is off: the bridge process exits, its WebSocket connections close, and agent-browser stops encoding frames for a client that is no longer there. A disabled plugin costs nothing but the bar glyph.

IPC

Every control is scriptable, so it can go on a keybinding:

omarchy-shell io.github.marcoripa96.browser-minimap toggle     # on/off
omarchy-shell io.github.marcoripa96.browser-minimap cycle      # next session, then auto
omarchy-shell io.github.marcoripa96.browser-minimap select foo # pin a session by name
omarchy-shell io.github.marcoripa96.browser-minimap auto       # follow the busiest again
omarchy-shell io.github.marcoripa96.browser-minimap size       # toggle compact/expanded
omarchy-shell io.github.marcoripa96.browser-minimap expand
omarchy-shell io.github.marcoripa96.browser-minimap collapse
omarchy-shell io.github.marcoripa96.browser-minimap status     # JSON state

# hyprland.conf
bind = SUPER, B, exec, omarchy-shell io.github.marcoripa96.browser-minimap toggle

Settings

With the widget on the bar, settings live in its bar-layout entry in ~/.config/omarchy/shell.json; otherwise they live in its plugins[] entry. That is the same precedence the shell writes with, so a value is always read back from where it was saved.

{ "id": "io.github.marcoripa96.browser-minimap", "width": 420, "idleHideSec": 12 }

session and the rail are different things. session is durable, takes a comma-separated list, and narrows what the bridge connects to at all — which is also how you keep a session you would rather not have mirrored off the screen entirely; the rail is a runtime choice among the sessions it is already watching, and is deliberately not persisted — a session name from an hour ago means nothing after a restart.

Changes to fps, session and showPointer restart the bridge; the rest apply live.

Why the window covers the whole output

The layer-shell surface spans the output and the card is positioned inside it, with the input region masked to the card so everywhere else passes clicks straight through to whatever is underneath. That is what lets the card be dragged anywhere and settle into any corner, and it means the surface never changes size.

Sizing the surface to the card instead — the obvious way round — resizes the Wayland surface on every animation frame, and Hyprland animates layer resizes itself (layersIn/layersOut). Every frame of the QML animation therefore kicked off a compositor animation of its own, and the two fought over the same rectangle. Expanding, dragging and snapping now change the surface geometry not at all; the motion runs entirely on the scene graph.

Because a layer surface belongs to one output, dragging moves the card within the current screen. Use monitor to pin it to a different one.

Cost

At the default 4fps a 1440x900 viewport is roughly 150KB per changed frame, written to tmpfs and decoded once. Only the shown session's frames are written; the rest are tracked for their activity dot and kept in memory in case you switch to them — and their streams drop to 1fps once they have been out of the spotlight for ten seconds, since an idle stream still costs its browser a JPEG encode per frame. A hidden card decodes nothing: frames that arrive while it is dismissed are counted for the show/hide rules but never touched. Raising fps raises everything linearly, and the decode happens inside omarchy-shell — worth remembering before setting it to 30.

Requirements

• agent-browser on the box (any session, headless or headed)

The bridge itself is a static binary with no runtime dependencies. bridge.sh fetches the one matching uname -m (x86_64 or aarch64) from this repository's releases the first time the plugin starts, checks it against the digest committed in bridge.sha256, caches it under ~/.cache/omarchy-browser-minimap/ beneath that digest, and execs it — so the tools it needs are curl and sha256sum, and curl only for that first run. On any other architecture, build it yourself: cargo build --release in bridge/ produces a binary bridge.sh prefers over the download.

A release asset can be replaced after the fact, so managing to fetch one proves nothing about what it holds. bridge.sh therefore runs a download only when it hashes to exactly what bridge.sha256 names, which ties the executable to the commit you are reading rather than to whatever the release currently serves — including for anyone auditing this plugin at a fixed commit. A mismatch is fatal, and there is no falling back to a binary an earlier version cached: otherwise breaking the connection would be enough to choose which version of the bridge you run.

Developing

Keep the working copy somewhere of your own and let the install stay a plain clone of this repository, so what you test is what a user receives:

git clone https://github.com/marcoripa96/omarchy-browser-minimap.git ~/git/omarchy-browser-minimap
omarchy plugin add https://github.com/marcoripa96/omarchy-browser-minimap.git

# then, per change:
git -C ~/git/omarchy-browser-minimap push
omarchy plugin update io.github.marcoripa96.browser-minimap
omarchy restart shell

Editing the installed copy directly is quicker, but it hides the difference between your working tree and a fresh checkout — file modes are the usual casualty, and bridge.sh losing its executable bit would break every install while working perfectly on the machine it was written on.

omarchy plugin validate .                              # manifest contract
qmllint -I "$OMARCHY_PATH/shell" Service.qml Panel.qml BarWidget.qml
omarchy restart shell                                  # reload; NOT `refresh shell`,
                                                       # which resets shell.json to defaults
journalctl --user -t omarchy-shell -f                  # the shell's log

Run the bridge on its own to see exactly what the shell sees:

./bridge.sh --fps 4

bridge.sh prefers a dev build at bridge/target/release/ over the downloaded release binary, so a working copy tests its own code:

cargo build --release --manifest-path bridge/Cargo.toml
cargo test --manifest-path bridge/Cargo.toml
cargo clippy --all-targets --locked --manifest-path bridge/Cargo.toml -- -D warnings

The release workflow runs the tests, clippy and cargo fmt --check before it builds anything, so a tag with a lint failure never becomes a release.

OMARCHY_BROWSER_MINIMAP_BRIDGE overrides the binary path outright — useful for pointing an installed plugin at a build in your working copy.

Releasing

Installs verify the binary against bridge.sha256, so the digests have to sit in the commit the tag points at. They come from CI rather than from a sha256sum here, because a laptop build and a runner build of the same source are not byte for byte the same:

1. Bump the version in manifest.json and bridge/Cargo.toml, and commit.
2. Run the release workflow from the Actions tab on that branch. It builds both architectures and prints their digests in the job summary; the pin check only warns, since the pin is what you are about to write.
3. Copy those two lines into bridge.sha256, keeping the comment header, and commit.
4. Push the tag v<version> matching manifest.json. The workflow rebuilds, refuses to publish if the result does not match the committed pin, and otherwise attaches both binaries where bridge.sh expects to find them.

Step 4 rebuilding is what keeps the pin honest rather than decorative: a tag can only ship binaries its own commit already named. It also makes a tag final — re-running one after the runner images move on fails the digest check instead of quietly publishing different bytes under a version that installs have already pinned. Ship a new version instead.
