💡 Logitech Litra for Omarchy

"Your desk lights, one bar click away."

A Logitech Litra control panel for the Omarchy 4 bar — power, brightness, and color temperature
for one light or a whole set, as a group or individually, from a widget that looks and behaves like the first-party ones.

Install

omarchy plugin add https://github.com/jlopezxs/omarchy-logitech-litra --enable

--enable puts it straight into the bar's right section. Without it, add it later via Omarchy menu → Bar → Widgets, or with:

omarchy plugin enable jlopezxs.logitech-litra --section right

No build step and nothing to install as root for the plugin itself. The helper is a single Python 3 standard-library script that talks to the litra CLI.

Uninstall

omarchy plugin remove jlopezxs.logitech-litra

Nothing is left behind: no daemon, no unit file, no state outside the plugin directory, its cache under ~/.cache/omarchy-logitech-litra/, and its entry in ~/.config/omarchy/shell.json.

✨ Features

Requirements

• Omarchy 4 (the Quickshell bar)

• Python 3.9+ (already present on Omarchy)

• litra-rs (litra on PATH) — from the panel or manually:

  omarchy pkg aur add litra


  AUR: litra

• Logitech Litra connected via USB (Glow, Beam, or Beam LX)

• Linux HID permissions — video group + udev rules (see below)

⚙️ Settings

{
  "id": "jlopezxs.logitech-litra",
  "hosts": "ABC123, /dev/hidraw3",
  "groupMode": false
}

From the CLI:

omarchy bar set jlopezxs.logitech-litra hosts "ABC123"
omarchy bar set jlopezxs.logitech-litra refreshIntervalSec 60 --json
omarchy bar set jlopezxs.logitech-litra groupMode false --json

Using it

Mouse

Keyboard

Hyprland bindings

Add to ~/.config/hypr/bindings.conf:

bind = SUPER SHIFT, L, exec, quickshell -p $OMARCHY_PATH/shell ipc call jlopezxs.logitech-litra lightsToggle
bind = SUPER ALT,   L, exec, quickshell -p $OMARCHY_PATH/shell ipc call jlopezxs.logitech-litra toggle

Available IPC calls: open, close, toggle, lightsOn, lightsOff, lightsToggle, brightness <0-100>, kelvin <2700-6500>, identify <host>, rescan, state. Quickshell requires every argument — pass identify "" to blink the first light.

📷 Webcam autotoggle

Optional litra-autotoggle integration: click the webcam icon (󰍩) on a light row. If the tool is not installed, an inline install panel opens; after install, the light syncs with your webcam automatically.

When enabled, the plugin writes:

• ~/.config/litra-autotoggle/config.yml — mirrors your hosts filter when a single light is configured
• ~/.config/systemd/user/litra-autotoggle.service — user service running litra-autotoggle --config-file …

systemctl --user status litra-autotoggle
journalctl --user -u litra-autotoggle -f

See the litra-autotoggle docs for advanced options (video device, delay, Beam LX back light).

If installation fails with 99-litra.rules exists in filesystem, you already have the udev rules (from litra or a manual copy). Remove the orphan file and retry:

sudo rm /usr/lib/udev/rules.d/99-litra.rules
omarchy pkg aur add litra-autotoggle

Both litra and litra-autotoggle ship the same rules file — only one copy is needed.

🔌 USB permissions

Non-root access requires membership in the video group and udev rules. The AUR litra package usually installs them; if not, use the copy in this repo:

sudo usermod -aG video $USER
sudo cp 99-litra.rules /etc/udev/rules.d/
sudo udevadm control --reload-rules && sudo udevadm trigger

Log out and back in (or reboot) after adding yourself to video.

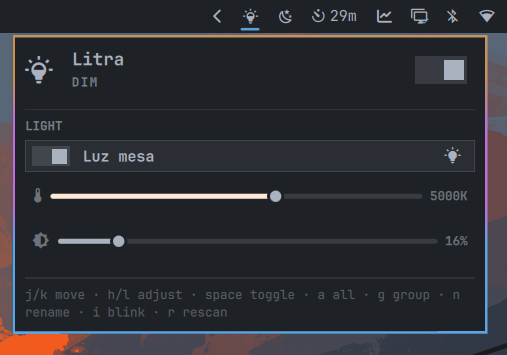

Screenshots

Bar icon	Control panel

Helper CLI

scripts/litra is usable on its own and prints JSON on stdout for every subcommand:

scripts/litra discover
scripts/litra state
scripts/litra autotoggle-status
scripts/litra autotoggle-enable
scripts/litra autotoggle-disable
scripts/litra set --brightness 60 --kelvin 4500
scripts/litra set --host ABC123 --off
scripts/litra rename --host ABC123 "Desk"
scripts/litra identify --host ABC123
scripts/litra firmware

Every subcommand exits 0 and reports failure as {"ok": false, "error": ...}, including when litra is not installed (litra-missing) or a light is unplugged.

Lights are controlled over USB HID via the litra binary from litra-rs. Brightness is shown as 0–100% (mapped from lumens); temperature is 2700–6500 K in 100 K steps. Values are applied optimistically while you drag and reconciled from the hardware shortly after.

Development

omarchy plugin validate .
python3 -m unittest discover -s tests

Work on the panel without installing it:

quickshell -p tests/harness/shell.qml

omarchy plugin add and plugin validate refuse symlinks inside a plugin folder — copy the working tree into ~/.config/omarchy/plugins/ rather than linking. The harness exists to avoid needing that.

Attribution

• HID protocol and udev rules courtesy of litra-rs by Tim Rogers
• Webcam autotoggle support uses litra-autotoggle
• Panel structure adapted from omarchy-elgato-keylight by nille
• README intro style inspired by omarchy-one-dark-pro-darker-theme

License

MIT. See LICENSE.

Not affiliated with or endorsed by Logitech.
