Navidrome Remote

Omarchy bar widget showing what is playing on your Navidrome server from any device — Kodi, a phone, a tablet, cliamp — with a live progress bar, and transport controls for clients that can actually be controlled.

Hidden while nothing is playing.

Install

omarchy plugin add https://github.com/Kyrunner/omarchy-navidrome-remote.git --enable

Setup

Create ~/.config/omarchy-navidrome/config.json:

{
  "url": "http://192.168.1.10:4533",
  "public_url": "https://navidrome.example.com",
  "user": "you",
  "password": "...",
  "controllers": [
    {
      "player": "KodiNavidrome",
      "type": "kodi",
      "url": "http://192.168.1.20:8080",
      "user": "kodi-web-user",
      "password": "kodi-web-password"
    }
  ]
}

chmod 600 it.

Controllers

player must match the player name Navidrome reports, which you can read straight off the API:

./backend.sh | python3 -m json.tool | grep player

Only "type": "kodi" is implemented. Kodi needs Settings → Services → Control → Allow remote control via HTTP turned on, and the username/password you set there go in user/password.

Clients that only report at track start

Some Subsonic clients — play:Sub on iOS is one — send a single now-playing report when a track begins, and nothing afterwards. No pause, no resume, no stop.

Navidrome extrapolates position from that one report, caps it at the track duration, and then deletes the entry. The practical consequences:

• The row disappears when the track would have ended, whether or not it did.
• Resuming a paused track will not bring the row back. The client never tells the server, so the server cannot tell this widget. Skipping to the next track does work, because a new track triggers that one report.
• While paused, the row keeps reading as playing with a moving progress bar, until it reaches the end.

None of this is fixable from the plugin — the information never leaves the phone. A client that re-reports periodically behaves correctly, as does Kodi, which is asked directly on every poll.

Most Subsonic clients cannot be controlled at all. Subsonic is a streaming protocol with no transport endpoints — the server does not own playback, so there is nothing to send a pause to. Phone and tablet apps generally expose no remote API. For those sessions the widget shows everything and disables the buttons with the reason.

Using it

A failure is silent until it has lasted 45 seconds. Inside that window the poll retries every 5s — or 20s on the public path, matching its backed-off interval — and the widget keeps showing the last known session, unmarked; only the hover tooltip flags it as stale. If it has nothing yet — the usual case at boot, since the bar starts before WiFi associates — it shows nothing at all. Only 45s of continuous failure earns the red !, marks the popup itself last-known, and one good poll clears it.

Two endpoints, and why the order matters

At a 5s poll this widget makes 17,280 requests a day. Sent through a public edge running a rate limiter or an IP-ban daemon, that is a steady drum on your own defences, and tripping them bans you from your own server. So the LAN address is always tried first, and public_url is a fallback rather than an equal option. On the public path the poll backs off to 20s — and so does the retry, so a failing public endpoint is retried every 20s rather than every 5s. Answering a rate limit by quadrupling the request rate is how a temporary block turns into a ban.

The choice is remembered in ~/.local/state/omarchy-navidrome/endpoint.json, because the backend runs as a fresh process on every poll and would otherwise pay a LAN timeout on every single poll while you are away. After a fallback it stays on the public endpoint for 10 minutes, then re-probes the LAN — so walking back in the front door restores the fast path on its own.

Bad credentials are never failed over to the public endpoint. Retrying a wrong password against your own public edge is a good way to get banned by it.

Dependencies

The bar icon is an SVG, needing qt6-svg — already a hard dependency of quickshell.

Removing it

omarchy plugin remove ky.navidrome-remote
rm -rf ~/.config/omarchy-navidrome ~/.local/state/omarchy-navidrome

The plugin only ever writes inside ~/.local/state/omarchy-navidrome/. It reads its config and never edits it.

Debugging

backend.sh is the whole network surface, so it can be run over SSH:

./backend.sh                                  # every active session, as JSON
./backend.sh control KodiNavidrome playpause  # play/pause
./backend.sh control KodiNavidrome next
./backend.sh control KodiNavidrome previous
./backend.sh control KodiNavidrome stop
./backend.sh star <songId>                    # favourite a track
./backend.sh unstar <songId>

Failures are distinct on purpose — not configured, unreachable, auth failed, no controller configured for X, controller unreachable — because a dead server and a quiet one must never look the same.

State lives in ~/.local/state/omarchy-navidrome/:

• endpoint.json — which endpoint last worked. Delete to force a LAN re-probe.
• covers/ — cover art cache, capped at 100 files, oldest evicted first.
• starred.json — per-track favourite state, 30s TTL. Safe to delete; it refills.

Design

See DESIGN.md for why display is universal but control is not, how the endpoint fallback works, and how "no remote API" is told apart from "unreachable from here".

Icon

navidrome.svg is from dashboard-icons (Apache 2.0).

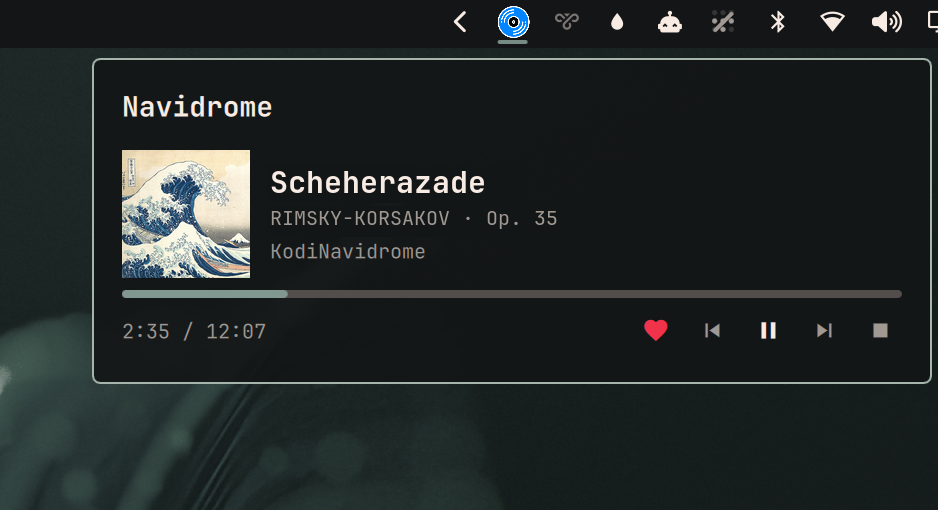

Preview image

preview.png uses Hokusai's The Great Wave off Kanagawa (1831) as cover art and Rimsky-Korsakov's Scheherazade Op. 35 (1888) as the track — both public domain. No studio artwork is reproduced anywhere in this repository.
