omajam

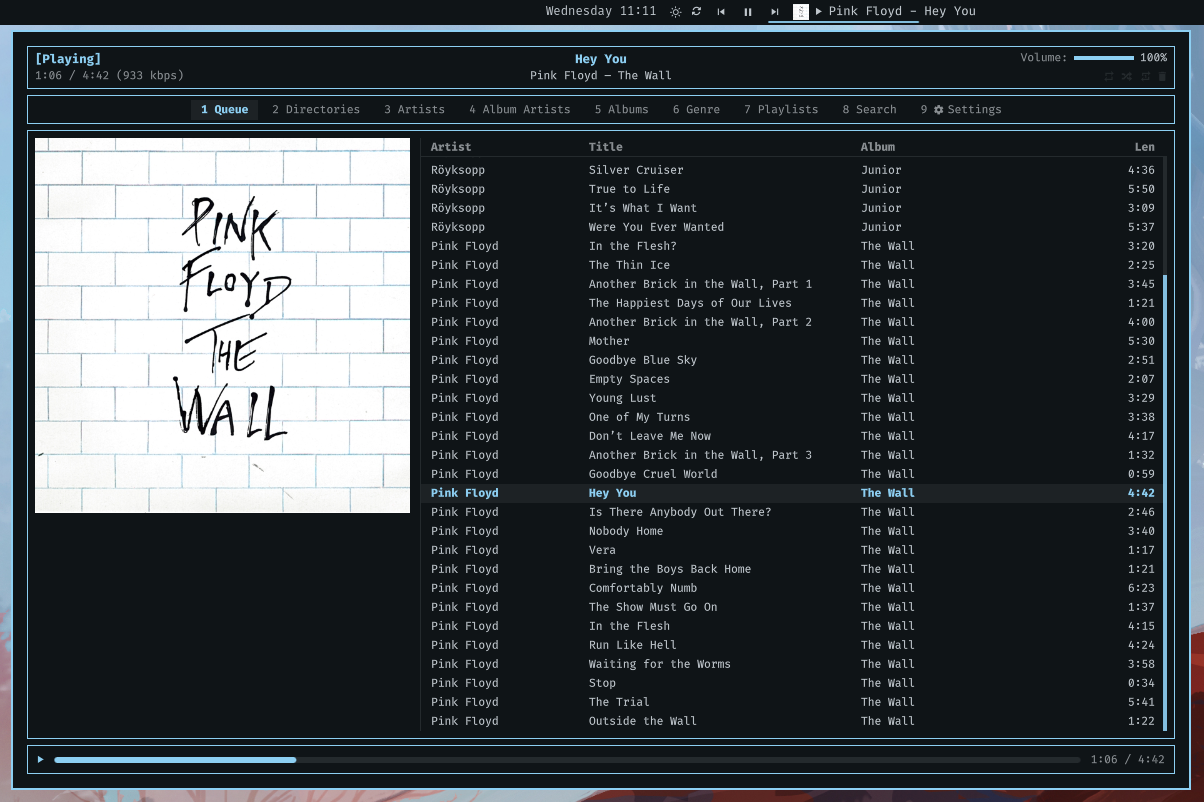

An MPD client for the Omarchy Quattro bar: what's playing in the bar, and a window behind it holding the queue, your library, your playlists and a search box, laid out like rmpc and using the same keys.

Written by Claude, Anthropic's coding agent. Omarchy plugins run unsandboxed inside your shell process, with your permissions. Read the source first. No promises about your record collection.

Features

• Nine tabs — queue, directories, artists, album artists, albums, genre, playlists, search, settings — with the cover and progress bar always visible.
• rmpc's default keybindings. ? lists them.
• Three-column library browser, with the preview column fetched ahead. On a song it shows the cover and every tag the server holds.
• Bar label in mpc's format dialect, with a live preview in the settings tab.
• Driven by MPD's idle push, so nothing polls.
• TCP or unix socket, with a password, or whatever $MPD_HOST says.
• Optional notification on track change, with the cover.
• Reconnects on its own, and shows the server's error while it can't.
• Scriptable through omarchy-shell.

Colours, fonts and spacing come from the shell's theme tokens.

Needs python3, which Arch already has. No mpc and no libmpdclient: the plugin speaks the MPD protocol itself.

Install

omarchy plugin add https://github.com/matjam/omajam.git --enable

Choose left, center or right when prompted; the window opens centred either way. Move it later from the bar's settings or bar.layout in ~/.config/omarchy/shell.json.

omarchy plugin update matjam.omajam    # update
omarchy plugin remove matjam.omajam    # remove, leaves nothing behind

Omarchy's built-in omarchy.media widget is MPRIS-based and knows nothing about MPD. The two can coexist.

The window

Click the label in the bar, or omarchy-shell matjam.omajam client.

Keys

These are rmpc's defaults.

Search puts the cursor in the box, so keys type until esc returns them to the results. tab still switches tabs from inside it.

a acts on the marked rows, or the row under the cursor when none are marked. Adding an artist or album sends one filter rather than a line per song.

Mouse: click to select, double-click to play, click the progress bar to seek, click the header glyphs to toggle playback options. The wheel moves ten rows a notch, and the scrollbar can be dragged.

In the bar

The transport buttons play, pause and skip without opening anything. The cog opens the settings tab.

Settings

Tab 9, or the cog in the bar.

Server — host, port, password, and what the connection is doing, including the server's error when it refuses. Reconnect restarts it. Update database reads files whose timestamps changed; Rescan everything re-reads every file, for tags edited in place. u and U do the same from anywhere in the window. MPD reports that a scan is running but not how far along.

$MPD_HOST is read in full, including its password@host form, but only while the host field is empty.

Label format — see Format, with a live preview.

In the bar — label width, scroll or elide, which parts of the strip to show, what to do when nothing is playing, and what the scroll wheel does.

For the cover alone as the widget's icon, turn the cover thumbnail on, the play state glyph off, and clear the label format. The cover then sizes up to stand in for the icon other widgets have, and the glyph comes back on its own when nothing is playing. Right-click still opens the settings, so the cog can go too.

Notify on track change — off by default. Sends a desktop notification with the cover, the title and the artist and album, through the shell's own notification server, so it lands where your notifications go and respects do-not-disturb. Each one replaces the last rather than stacking, and nothing is announced for the song already playing when the shell starts.

MPD's own playback options aren't here: repeat, random, single and consume are glyphs in the window's header, and z/x/c/v from anywhere in it.

Format

The label format is mpc's, so one copied from a status-bar script mostly works unchanged.

[%artist% - ]%title% loses the dash along with the artist rather than leaving a title starting with one, and [%title%|%filename%] falls back to the filename for an untagged track.

Outside brackets a missing tag leaves a hole and | is an ordinary character, so %artist% | %title% is a separator.

Tags: artist albumartist title album track disc date genre composer performer comment name file filename folder state stateicon elapsed duration remaining time position length volume bitrate audio repeat random single consume

name is a radio stream's name, the only title many of them carry. filename is the basename without its extension; folder is the directory inside your music library.

Some to steal:

%stateicon% [%artist% - ]%title%          ▶ Wire - Another the Letter
[%artist% — ]%title%[ (%date%)]           Wire — Another the Letter (1978)
[%title%|%filename%][  ·  %time%]         Another the Letter  ·  0:41/4:14
[%name%|%artist% - %title%|%filename%]    radio first, then tags, then the file
%title%[  ·  %position%/%length%]         Another the Letter  ·  3/17

Formats containing %elapsed%, %remaining% or %time% update once a second. MPD reports elapsed only when something changes, so the clock is carried forward locally and reset by every update.

From the command line

omarchy-shell -q mpd toggle          # play/pause
omarchy-shell -q mpd next            # and previous, stop, play, pause
omarchy-shell -q mpd volume +5       # a sign nudges, a bare number sets
omarchy-shell -q mpd seek 90         # absolute, in seconds
omarchy-shell -q mpd option random   # repeat, random, single, consume
omarchy-shell -q mpd clear           # and shuffle, crop
omarchy-shell -q mpd add "Wire/Pink Flag"
omarchy-shell -q mpd load "Friday"   # a stored playlist
omarchy-shell -q mpd update          # read the files that changed
omarchy-shell -q mpd rescan          # re-read every file in the library
omarchy-shell mpd status             # JSON state
omarchy-shell mpd queue              # JSON queue
omarchy-shell matjam.omajam client   # the window
omarchy-shell matjam.omajam settings # the window, on its settings tab
omarchy-shell matjam.omajam search "kate bush"
omarchy-shell matjam.omajam key a    # any key the window takes
omarchy-shell matjam.omajam key esc  # named keys: esc enter tab space
                                     # up down left right pgup pgdn home end
omarchy-shell matjam.omajam state    # what the window is showing, as JSON

Binds go in ~/.config/hypr/bindings.lua:

o.bind("SUPER + M", "omajam", "omarchy-shell matjam.omajam client")
o.bind("SUPER + SHIFT + M", "omajam settings", "omarchy-shell matjam.omajam settings")

o.bind("XF86AudioPlay", "Play/pause", "omarchy-shell -q mpd toggle", { locked = true })
o.bind("XF86AudioNext", "Next track", "omarchy-shell -q mpd next", { locked = true })
o.bind("XF86AudioPrev", "Previous track", "omarchy-shell -q mpd previous", { locked = true })

locked = true keeps the transport keys working on the lock screen. The window opens on the monitor with focus, wherever the widget itself lives.

How it works

Quickshell's Socket is a QLocalSocket, so it does unix sockets only, and MPD is usually on TCP. The connection lives in a python child process, bin/omajam-mpd. The shell and the bridge exchange one line of JSON at a time: settings, commands and queries down; state and answers back.

The bridge holds three connections: one parked in idle, one for commands and status, and one for the window's browsing queries, so a search across ten thousand songs is not felt on the play button. Album art gets a fourth, short-lived one.

Queries carry a channel, and a query superseded by a newer one on the same channel is dropped, so typing in the search box costs one query rather than one per keystroke.

The connection belongs to the plugin's service, one per shell rather than one per monitor: the widget is instantiated on every screen, and three of them would open three connections. Each reads the service back through shell.serviceFor().

Covers are cached under ~/.cache/omajam, keyed by album so a whole record costs one fetch, and pruned to the most recent 96.

albumart returns the cover file beside the song, readpicture whatever is embedded in the tags. The bridge tries the first and falls back to the second; a track with neither gets a placeholder.

Both return the image in chunks of binarylimit bytes, 8KB by default. The bridge raises that to 256KB on its art connection, turning a 3MB cover from 400 round trips into 12. Servers older than 0.22 reject the command and keep their default.

MPD 0.21 introduced the filter expression — find "((artist == 'Wire'))" — and has been deprecating the older tag/value form since. The bridge writes whichever the server understands, because 0.20 is still what some NAS boxes ship.

Requirements

Omarchy Quattro · python3 (already installed on Arch) · an MPD server, which can be on another machine.

No network access beyond the MPD connection you configure, nothing written outside ~/.cache/omajam, and no dependency on mpc or libmpdclient.

Your password is stored as plain text in ~/.config/omarchy/shell.json, like every other shell setting, and is sent to MPD in the clear unless you tunnel it. Leave the field empty and use $MPD_HOST=password@host to keep it in your environment instead. The bridge is given its settings over stdin rather than argv, so the password is not visible in ps.

MIT — see LICENSE.
