Resonance — spectrum bar widget + player popup
Live cava spectrum in the Omarchy bar. The strip is a stock
WidgetButton, so hover tooltip, pointing-hand cursor, and click routing
behave exactly like the built-in widgets. Hover shows the playing track in a
pill below the bar (title — artist). Left-click opens a three-tab popup,
right-click toggles Words/Spectrum.

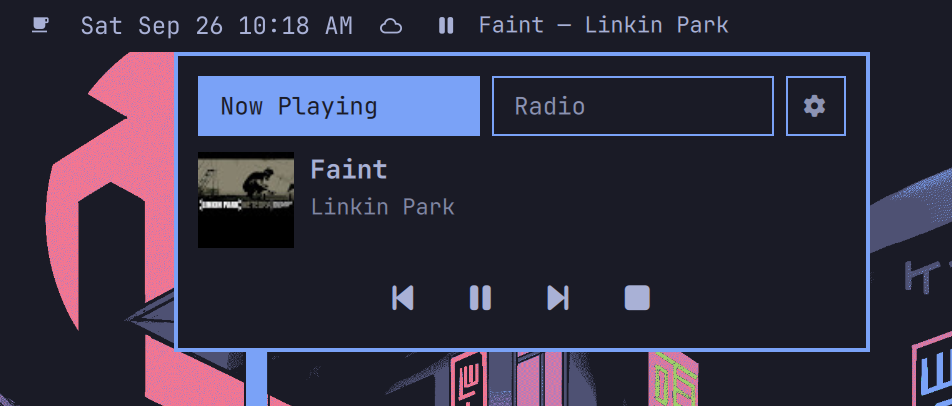

- Now Playing: any MPRIS player, tracked directly (no dependency on the
stock

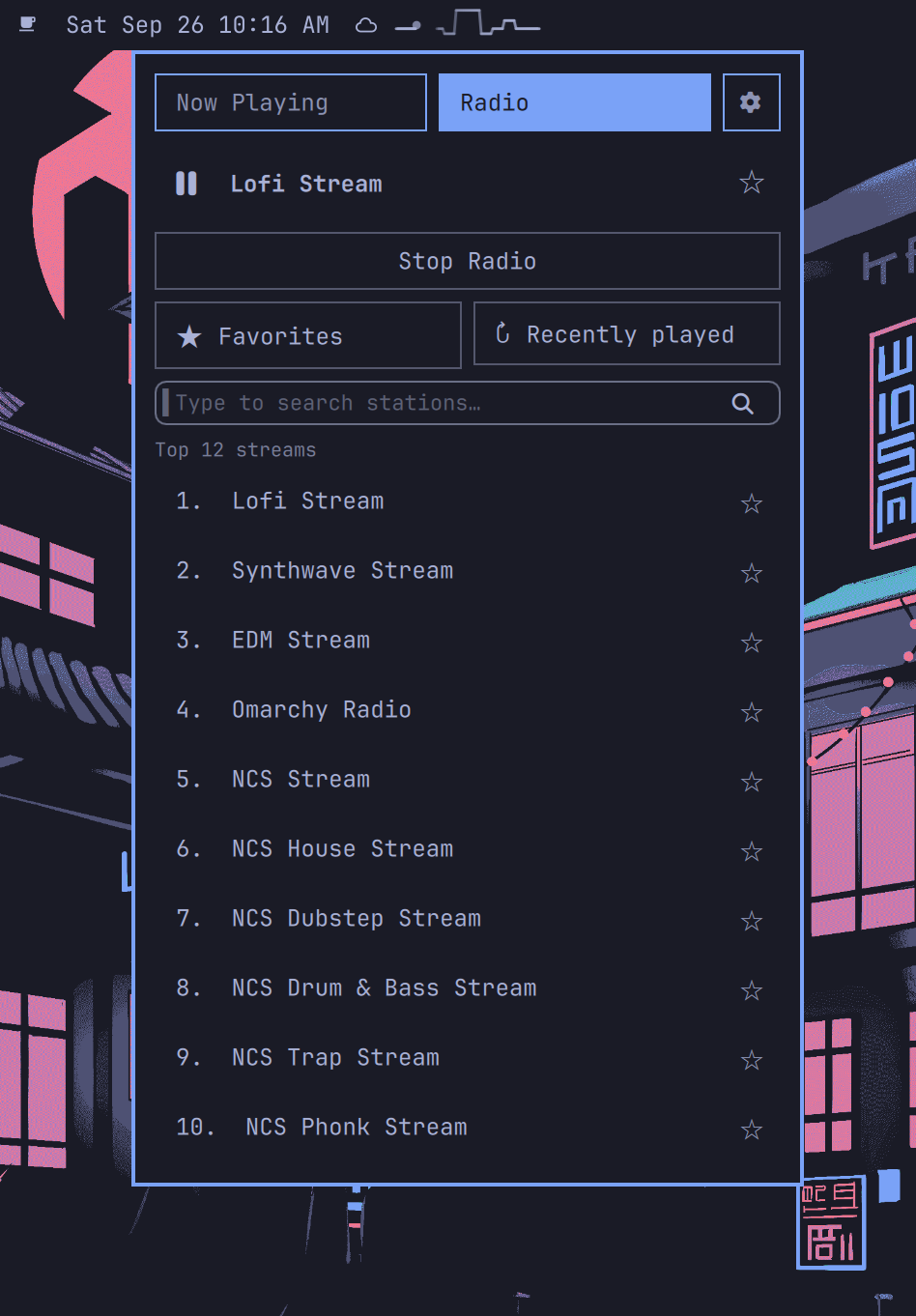

omarchy.mediaservice) — cover art, title, artist, Prev/Play/Next/ Stop, all capability-gated. Auto follows whichever player is active; the gear tab locks a specific app (Firefox/Zen, Chromium/Chrome, Brave, Vivaldi, Opera, VLC, Spotify, mpv and more are always listed, anything else appears while running, offline picks are kept). cliamp has its own tab and never pollutes this one. Opens by default when something plays. - cliamp: now-playing header with play/pause toggle; curated top-12
streams (direct
radio.cliamp.streamURLs viatrack.play— no search round-trip, so entries always resolve); search covers names and countries with most-listened-first ranking; lists scroll on overflow; cold-start buttons when the daemon is down. Opens by default when nothing plays. - Settings (gear): all 18 bar visuals in a grid plus the music-player
picker. Both persist to
~/.config/omarchy/mystaryo.media.json. - Popup closes via outside-click (scrim) or Esc.
Bar visuals (18)
Wave (default), Bars, Bloom, Blocks, Dots, Blob, Radar, Tide, Stars, Helix, Aurora, Lightning, Orbit, Particles, Bounce, Pulse, ECG, Waveform. Pick in the gear tab; right-click toggles Words/Spectrum.
Files
manifest.json— plugin manifest (mystaryo.media,bar-widget).MediaWidget.qml— bar strip, popup, MPRIS tracking, cliamp IPC.Visualizer.qml— canvas painters for the 18 styles (gracefulpaintWavefallback on any paint error, so a bad frame can never crash the bar).cava.conf— portable cava config, no user paths, no~/.config/cavadependency.
Requires (all degrade gracefully if missing)
cava(omarchy pkg add cava) +parecord/pactl(libpulse, preinstalled): audio arrives via a low-latencyparecordbridge (default sink monitor, raw s16le, 50ms latency) into a fifo that cava reads at the selected visualizer FPS (30 by default) — cava 0.10.x's native PipeWire/Pulse inputs attach but read zeros on this system. The wrapper uses a private per-user runtime fifo and cleans up only the recorder process it started, so hot-reloads cannot stack duplicate recorders. Without them, the bar shows a static ♪.cliampdaemon (cliamp -d, auto-started from the cliamp tab) — without it, the widget is pure-MPRIS (spectrum + transport for any player).
Design rules
- MPRIS + audio-tap data only. No notification listeners: unknown sounds can only move bars, never crash anything.
- Every external boundary degrades: dead cava restarts with backoff (5 tries,
then static ♪); missing players fall back to Auto; junk metadata gets
"Unknown …"fallbacks; capability-gated buttons; debug logging behind adebugflag (default off). - Colors come from the live bar theme. No absolute paths, no hardcoded home directory.
Install
omarchy plugin add https://github.com/ShravyaKudlu/omarchy-plugin-resonance --enable
omarchy bar put mystaryo.media --section left
omarchy restart shell
Rollback
omarchy plugin disable mystaryo.media
