Elgato Key Light

by nille

Elgato Key Light control: power, brightness, and color temperature for one or many lights.

GitHub
Install
$ omarchy plugin add https://github.com/nille/omarchy-elgato-keylight --enable
Widgets #quickshell

Elgato Key Light for Omarchy

An Elgato Key Light control panel for the Omarchy 4 bar.

Power, brightness, and color temperature for one light or a whole set — as a group or individually — from a bar widget that looks and behaves like the first-party ones.

The bar widget among the other bar icons

All together Individually

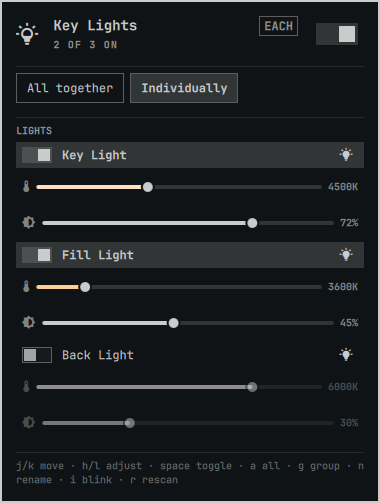

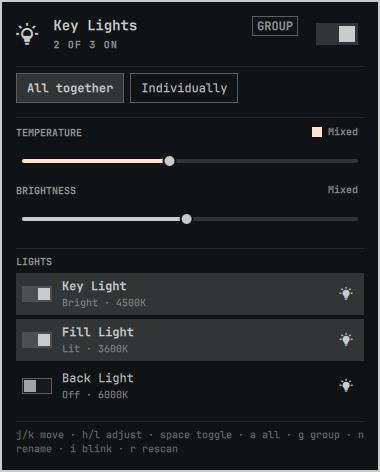

Group view: one temperature and brightness slider driving every light Individual view: compact sliders per light

What it does

  • Quick on/off. Right-click the bar icon, or hit the master switch in the panel. Scroll on the icon to change brightness without opening anything. The icon dims when every light is off, so the bar reads at a glance without claiming your attention.
  • Group or individual. One pair of sliders for every light at once, or a compact pair per light. The bar glyph fills in as the lights get brighter.
  • Persistent names. Rename a light and the name is written to the light's own flash — so it survives reboots, follows the light to another machine, and matches what Elgato's Control Center shows.
  • Blink to identify. With several lights on a desk, the only reliable way to tell which row is which fixture.
  • Keyboard driven. The panel is fully navigable without a mouse.
  • Themed. Colors, font, corner rounding, and border weights all come from the active Omarchy theme, so omarchy theme set restyles it live.

Install

omarchy plugin add https://github.com/nille/omarchy-elgato-keylight --enable

--enable puts it straight into the bar's right section. Without it, add it later via Omarchy menu → Bar → Widgets, or with:

omarchy plugin enable nille.elgato-keylight --section right

No build step, no compiled binary, and nothing to install as root. The helper is a single Python 3 standard-library script, which is what lets omarchy plugin add — which deliberately never runs plugin code or install hooks — set this up end to end.

Uninstall

omarchy plugin remove nille.elgato-keylight

Nothing is left behind: no daemon, no unit file, no state outside the plugin directory and its entry in ~/.config/omarchy/shell.json. Names you set live on the lights themselves, so they survive uninstalling — and reappear in Elgato's own apps.

Requirements

  • Omarchy 4 (the Quickshell bar)

  • Python 3.9+ (already present on Omarchy)

  • avahi-daemon running, for automatic discovery. Omarchy installs avahi as part of its base packages, but only enables the daemon if you set up a printer, so it may be present and inactive:

    systemctl is-active avahi-daemon || sudo systemctl enable --now avahi-daemon

    Optional either way — set hosts to pin addresses instead.

Settings

Key Default What it does
hosts "" Comma-separated addresses, e.g. 192.168.1.10, 192.168.1.11. Skips discovery entirely. Set this if mDNS is blocked on your network or you want a fixed order.
refreshIntervalSec 30 How often to re-read state while the panel is open.
groupMode true Start with all lights ganged together.
hideWhenAbsent false Remove the bar icon when no lights are found, instead of showing a dimmed one.
{
  "id": "nille.elgato-keylight",
  "hosts": "192.168.1.10, 192.168.1.11",
  "groupMode": false
}

Or from the CLI, without editing the file:

omarchy bar set nille.elgato-keylight hosts "192.168.1.10, 192.168.1.11"
omarchy bar set nille.elgato-keylight refreshIntervalSec 60 --json
omarchy bar set nille.elgato-keylight groupMode false --json

--json is what distinguishes the number 60 and the boolean false from the strings "60" and "false".

Using it

Mouse

Action Result
Left-click icon Open the panel
Right-click icon Toggle every light
Middle-click icon Rescan the network
Scroll icon Group brightness
Left-click a row Toggle that light
Right-click a row Rename it
Blink button on a row Flash that light so you can find it

Keyboard

Key Result
j / k Move the cursor
h / l Adjust the slider under the cursor
space Toggle
a All lights on/off
g Group ⇄ individual
n Rename the light under the cursor
i Blink the light under the cursor
r Rescan
Esc Close

Hyprland bindings

Everything is reachable over IPC, so you can drive the lights without opening the panel. Add to ~/.config/hypr/bindings.conf:

bind = SUPER SHIFT, L, exec, quickshell -p $OMARCHY_PATH/shell ipc call nille.elgato-keylight lightsToggle
bind = SUPER ALT,   L, exec, quickshell -p $OMARCHY_PATH/shell ipc call nille.elgato-keylight toggle

Available calls: open, close, toggle, lightsOn, lightsOff, lightsToggle, brightness <0-100>, kelvin <2900-7000>, identify <host>, rescan, state. Quickshell requires every argument, so pass identify "" to blink the first light.

The helper CLI

scripts/keylight is usable on its own, and prints JSON on stdout for every subcommand:

scripts/keylight discover                                  # find lights
scripts/keylight state                                     # read them
scripts/keylight set --brightness 60 --kelvin 4500         # all of them
scripts/keylight set --host 192.168.1.10 --off             # just one
scripts/keylight rename --host 192.168.1.10 "Left Key"
scripts/keylight identify --host 192.168.1.10
scripts/keylight firmware                                  # installed versions

Every subcommand exits 0 and reports failure as {"ok": false, "error": ...}, including when a light is unplugged. The panel is a UI, not an error handler: it should never have to tell "the helper crashed" apart from "the light is asleep", so both arrive as data.

Firmware

Each light's installed version shows in its row tooltip, and scripts/keylight firmware prints it. Compare it against Elgato's release notes to see whether you are current.

The panel never says an update is available, and there is no "check for updates" button. Elgato publishes no machine-readable firmware feed and no downloadable images, so such a control would behave identically whether you were current or three versions behind — a notification carrying no information is worse than no notification.

Updating is deliberately out of scope, and the helper has no flash command. The Elgato phone apps update over Bluetooth and need no desktop at all, which is the easiest supported path; Control Center on Windows or macOS also works. Reporting the version stays strictly read-only, because the light's own update routes erase its staging flash just by being addressed.

Files

  • manifest.json — plugin id, bar widget metadata, settings schema and defaults
  • Panel.qml — bar glyph, popout, cursor model, IPC. Every control is a qs.Ui component, so nothing about the look is hardcoded here
  • Model.js — pure functions: parsing, clamping, labels, argv building. No QML types, no state, no side effects, which is what makes it testable
  • scripts/keylight — the helper CLI: mDNS discovery, HTTP, concurrency
  • tests/test_keylight.py — 71 unit tests over the helper
  • tests/harness/shell.qml — standalone window for developing the panel without a running Omarchy shell
  • preview.png — composite of the screenshots below, at the repository root because that is where the plugin marketplace looks for a listing image

How it works

Lights speak HTTP on port 9123 and advertise themselves as _elg._tcp. Temperature travels the wire in mired (mired = 1e6 / kelvin); the panel works in Kelvin and snaps to 50K stops, because the round trip is lossy and unsnapped values make the readout jitter. Discovery is cached, since it costs about a second of network waiting and is the difference between a panel that opens instantly and one that hangs.

Values are applied optimistically while you drag and reconciled from the hardware shortly after, so the slider tracks your finger but still ends up showing what the firmware actually accepted — including changes made from another app.

Verify

omarchy plugin validate .
python3 -m unittest discover -s tests

plugin validate runs the same manifest checks the shell enforces at load time, so it fails before an install does. The unit tests never touch a real light.

To work on the panel itself without installing it, the harness stands in for the bar:

quickshell -p tests/harness/shell.qml

Note that omarchy plugin add and plugin validate both refuse symlinks anywhere inside a plugin folder, so a working tree has to be copied into ~/.config/omarchy/plugins/ rather than linked — the harness exists to avoid needing that at all.

A note on the network API

The Key Light's HTTP API is unauthenticated, which is a property of the hardware rather than of this plugin — see CVE-2025-7202. Anything on your network can already control your lights. Worth knowing if you run one on a network you do not trust.

Contributing

Issues and pull requests are welcome. Two things worth knowing before you start:

  • Only one Key Light was available to develop against. Multi-light behavior is covered by unit tests and by mocking the helper, not by hardware. If you own several, reports about group mode and per-light rows are the most useful thing you can send — especially mixed states across different firmware versions.
  • Keep logic out of QML. Parsing, clamping, and argv building belong in Model.js as pure functions, which is what makes them testable without a running shell. Panel.qml should stay presentation.

Run python3 -m unittest discover -s tests and omarchy plugin validate . before opening a PR. Please do not hardcode colors, fonts, or spacing — every value comes from the active Omarchy theme via qs.Ui, and a literal breaks theming for everyone else.

License

MIT. See LICENSE.

Not affiliated with or endorsed by Elgato / Corsair.
