HabitGrid

A contribution graph for your life.

The graph that got you to code every day — now for everything else.

HabitGrid is an Omarchy shell plugin. Press Super+Shift+H, press Enter, and today's square turns green. That is the whole interaction.

• One keystroke to log. No app to open, no form, no sync spinner.
• A year at a glance. 53 weeks of every habit, GitHub-style, with hover values and streaks.
• Your data is a markdown file in your own vault. No account, no cloud, no database. Open it in Obsidian and it reads like notes, because it is notes.

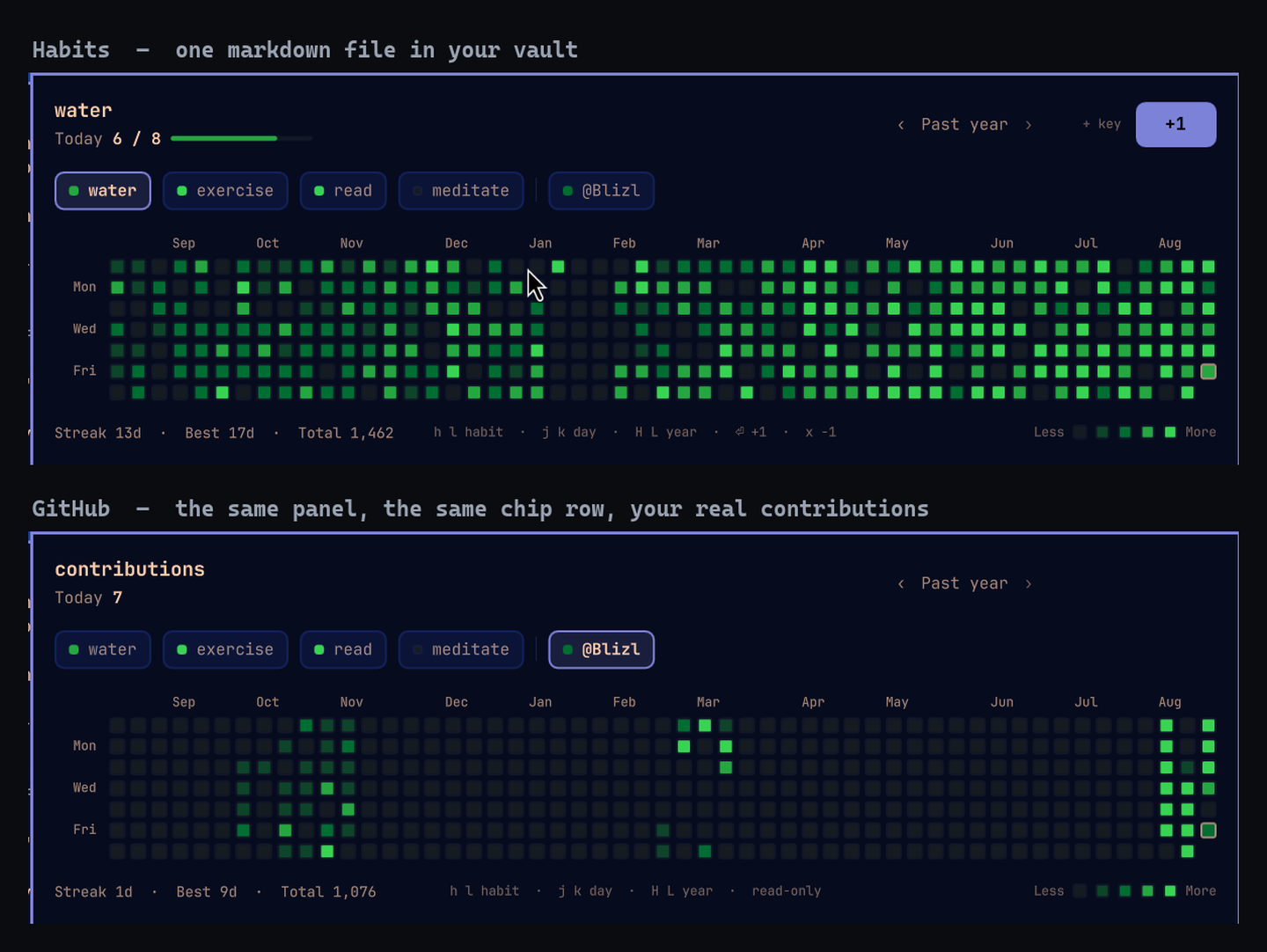

Backends: the same panel, other data

The panel does not know what a habit is. It asks a backend for counts per day, and draws them. Point it at GitHub and the same chip row carries your commit graph next to your water intake.

{
  "sources": [
    { "backend": "obsidian-markdown", "file": "~/Obsidian/MyVault/Habits.md" },
    { "backend": "github-contributions", "username": "your-handle" }
  ]
}

Two backends ship with the plugin: obsidian-markdown (the default, and the one this is really for) and github-contributions (read-only). Up to four can be active at once, and writing a third of your own is about sixty lines.

Install

omarchy plugin add https://github.com/Blizl/Omarchy-HabitGrid --enable && ~/.config/omarchy/plugins/vliang.habitgrid/bin/setup

omarchy plugin add fetches the plugin and --enable puts it on the bar. bin/setup then does the two things a plugin is not allowed to do for itself: write a first-run config and bind Super+Shift+H. Both halves are safe to re-run — an existing config is kept, and the keybinding block is rewritten in place rather than appended a second time.

What it touches. No files outside ~/.config/omarchy/plugins/vliang.habitgrid, ~/.config/habitgrid, ~/.cache/habitgrid, the habit file you point it at, and — only with your consent — ~/.config/hypr/bindings.lua are modified. Nothing runs in the background and nothing phones home.

git clone https://github.com/Blizl/Omarchy-HabitGrid ~/src/habitgrid
~/src/habitgrid/install.sh
omarchy plugin enable vliang.habitgrid center

install.sh copies the checkout into the plugins directory, deletes files an older version left behind, and then runs bin/setup for you — same flags, same result.

./uninstall.sh removes the plugin and the binding; ./uninstall.sh --keybinding-only removes just the binding. Neither touches your habit file.

Requirements: Omarchy 4.x (Quattro) and Python 3.11+. Nothing else — no pip install, no node, no daemon.

Try it before you track anything

The repo ships a year of sample history. Point the config at it and the panel is full immediately:

{
  "sources": [
    { "backend": "obsidian-markdown",
      "file": "~/.config/omarchy/plugins/vliang.habitgrid/demo/Habits-demo.md" }
  ]
}

Switch the path back to your own file when you have seen enough.

Using it

With the mouse: click a chip to switch habits, click +1 or today's square to log, hover any square for its exact value. Right-clicking today is the same undo as x. Middle-clicking the bar icon re-reads the file without opening anything, and the icon lights up once every habit has been logged today.

Every change answers in the same frame: today's square swells on a +1 and dips on an x, and the header's count rolls the same way — bigger means more, smaller means less. The number moves on the keystroke rather than after the file has been written, so holding + climbs smoothly and a press that lands while a write is still going is queued rather than dropped. The grid never guesses: its colours change only once the file has been re-read, so if a square moved, something was written.

Adding a habit without leaving the panel

The + at the end of the graph — or the n key — turns the end of the chip row into a field you type a name into. Enter writes - <name> to your habit file, the chip appears and is selected; Esc leaves nothing behind. A name may not contain : or |, and a habit you already have is refused rather than written twice — including one that differs only in case, so typing Water at a file that has water answers "habit 'water' is already defined" instead of leaving you with two chips a letter apart. Either way the reason appears next to the field.

A goal goes in the same field. Type water | goal: 8 — or just water | 8 — and the habit is created with a target of eight times a day, written to the file as SPEC's - water | goal: 8. Without one the habit is still tracked; it just scales its colours against your own typical day instead of a target. A goal has to be a positive whole number, and the reason a particular one was refused appears next to the field like any other.

The + is only there when a source can hold a new habit, so a panel showing nothing but a GitHub calendar does not offer it.

Editing a habit without leaving the panel

e edits both things a habit is, each where you already read it. The header's 6 / 8 becomes 6 / [8] with the number selected, and the habit's name above it becomes a field too. Type 12, press Enter, and the line in your file becomes - water | goal: 12. Esc leaves both alone.

The goal has the keyboard first, because it is the edit you usually came for. ↑, ↓, Tab and Shift+Tab all move to the other field — any of them, either way round, so no arrow is ever dead — and clicking the other field does the same thing. Nothing is written by moving between them; what you have typed into one stays in it. Enter saves the edit, not just the field you pressed it in.

The field that does not have the keyboard is still obviously editable: both are chips, and the one holding the keyboard wears the accent border the selected chip wears. That is the whole difference, and the ring fades across when you switch.

Clear the goal field — or type 0 — and the goal comes off. The habit stays exactly where it is, with all of its history, and goes back to scaling its colours against your own typical day. A habit that never had a goal can be given one the same way, without deleting and re-creating it.

Renaming takes the history with it. The - water in your ## Definitions becomes - hydrate, and so does every - water: 6 in the log — that is the whole point of the operation, and it is why the graph does not go dark when you fix a name you regret. Everything else in the file is byte-for-byte as it was: if your definition line is - Morning Café | goal: 3, only the name's own bytes change, and - Morning Café : 2 in the log keeps its own spacing too. The habit also keeps its place in the chip row — renaming is not deleting and re-adding.

A name another habit already has is refused, including one that differs only in case, and the message names the spelling that exists so the fix is obvious. Changing only the capitalisation of a habit's own name is allowed, though — Water to water is a real rename, and the log follows it like any other.

When you change the name and the goal at once, the name is written first and the goal against the new name, so there is only ever one name in flight. If the rename is refused nothing at all is written; if the rename lands and the goal is turned down, the new name is already real and only the goal is left open beside its reason.

e is offered for a habit whose source can change a goal or a name — either is enough, and the panel opens on whichever it has — and not while you are looking at a past year.

Deleting a habit without leaving the panel

d asks — the header turns into Delete water? · its history stays in the file, the chip goes red, and the footer offers ⏎ delete · esc keep. Enter deletes; Esc, or any other key, keeps. One keystroke never deletes anything, which is why there is no button for it — the same reason x has none.

What it deletes is the definition, not the history. The - water line leaves your ## Definitions list and every - water: 6 in the log stays exactly where it is, so adding the habit back later brings the whole graph back with it. The panel then selects the next chip along, or falls into the empty state if that was the last habit.

d is offered only for a habit whose source can undefine one, and not while you are looking at a past year.

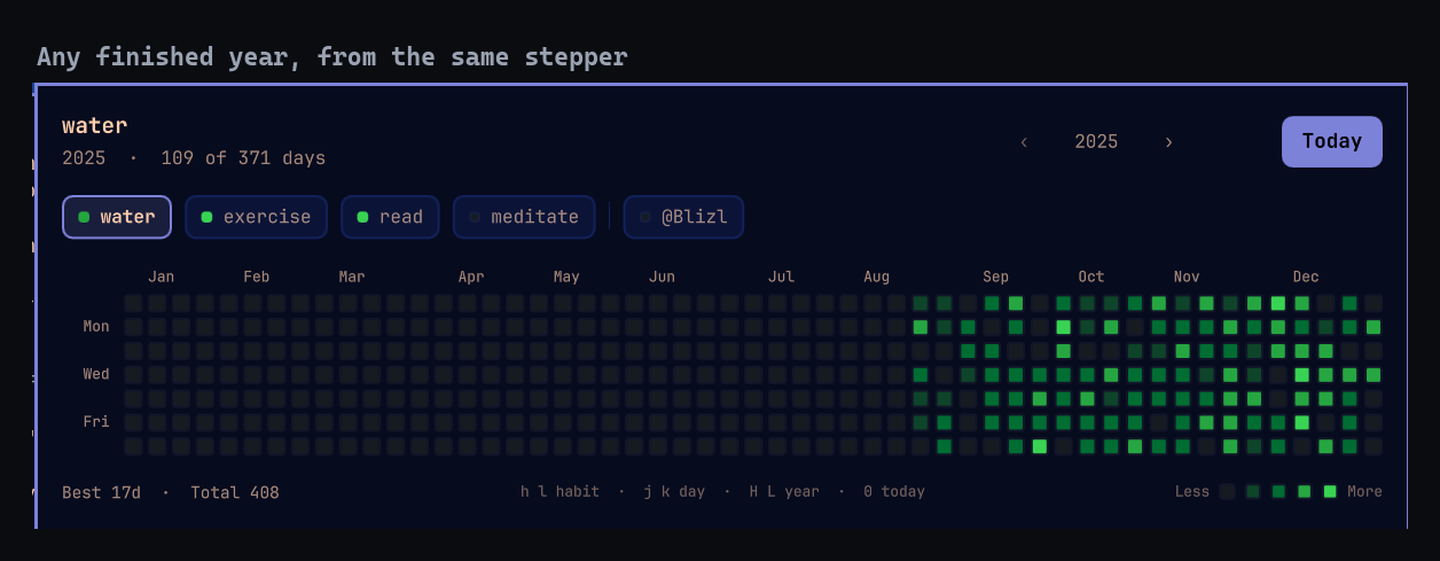

Looking at a past year

The stepper in the header walks back through the years you have data for. Every view is the same shape — 53 weeks — so nothing moves when you step; only the anchor changes. A past year is read-only: the +1 becomes a Today button that takes you back, the header counts the year instead of the day, and the stats drop the current streak because a closed year does not have one.

Years appear in the stepper once they are over and have something in them, so a new user never sees the control at all.

Track your habits in Obsidian

The default backend keeps everything in one markdown file in your vault.

1. Point it at your vault

~/.config/habitgrid/config.json:

{
  "sources": [
    { "backend": "obsidian-markdown", "file": "~/Obsidian/MyVault/Habits.md" }
  ]
}

The default is ~/Obsidian/2026_Notes_Sync/Habits.md. If the file does not exist, HabitGrid creates it from the starter below, so you can skip this step entirely and move the file later.

2. The file

# Habits

## Definitions

- water | goal: 8
- exercise | goal: 1
- read

## Log

### 2026-08-21

- water: 6
- exercise: 1

That is the whole format.

• ## Definitions is your habit list, in the order the chips appear. | goal: N is optional — a habit without one is still tracked, it just scales its colours against your own typical day instead of a target.
• ## Log holds one ### YYYY-MM-DD section per day, newest first, with one - habit: count line per habit. Days you skipped simply are not there.

Three promises about that file:

1. It is a normal note. Open it in Obsidian, put it in a folder, link to it, add frontmatter.
2. Anything else you write in it is preserved untouched. Prose, tags, headings, HTML comments — HabitGrid rewrites the one count line it is changing and leaves every other byte exactly as it found it.
3. Edits in Obsidian show up in the panel within the pull interval (30s by default), or instantly if you middle-click the bar icon.

3. Adding, renaming, removing habits

Edit the ## Definitions list in Obsidian. Add a line, and the chip appears. Delete a line, and the chip goes away — the history stays in the log, so putting the habit back brings its graph back with it.

Adding, editing and deleting are also keys. The + at the end of the graph (or n) appends a - <name> line — - <name> | goal: N if you typed a goal — at the end of the list, and touches nothing else in the file. e rewrites the | goal: N on one line, or the name on that line and on every log line that carried it, and leaves every other byte where it was. d asks first and then takes that one definition line back out, leaving the log intact. bin/habitgrid add <name> [--goal N], bin/habitgrid goal <name> <N>, bin/habitgrid rename <name> <new-name> and bin/habitgrid remove <name> do the same from a terminal.

Renaming by hand in Obsidian still works, and it is still two edits: the definition line and every log line under it. e is the one that does both.

4. Syncing

HabitGrid reads and writes one markdown file, so any vault sync works: Obsidian Sync, Syncthing, or a vault inside a Drive/iCloud folder. There is no account or API in the plugin at all.

Writes are safe across devices: every +1 re-reads the file immediately before writing and changes only the line it owns, then swaps the new file into place atomically. Two devices incrementing the same day cannot truncate each other's work, and a reader never sees a half-written file.

5. When something looks wrong

Errors from the backend appear in the panel itself rather than being swallowed.

Link your GitHub

The github-contributions backend renders your real contribution graph in the same panel. It is read-only: no +1 button, because nobody commits by clicking a square.

{
  "sources": [
    { "backend": "github-contributions", "username": "your-handle" }
  ]
}

That is the whole setup for a public profile — no token, no OAuth, no account linking. It reads the same public contributions page anyone can see at github.com/your-handle.

Add it alongside your habits rather than instead of them, and both live in one chip row:

{
  "sources": [
    { "backend": "obsidian-markdown", "file": "~/Obsidian/MyVault/Habits.md" },
    { "backend": "github-contributions", "username": "your-handle" }
  ]
}

Private contributions (optional)

To count contributions to private repositories, add a personal access token:

{
  "sources": [
    { "backend": "github-contributions", "username": "your-handle", "token": "ghp_..." }
  ]
}

A classic token needs the read:user scope; a fine-grained token needs no extra permissions beyond the default read access to your own profile. With a token the backend uses GitHub's GraphQL API instead of the public page.

Switching back

Delete the GitHub entry from sources, or move it after your habits so the default selection lands on a habit again. Nothing else changes, and no data is touched either way: the GitHub backend only ever reads.

When something looks wrong

Follows your theme

Run omarchy theme set and the panel follows: background, border, chips, the +1 button, focus rings, tooltip. The contribution squares stay green, because green means done — a red or pink ramp reads as a warning, and the accent is already doing work as the button and the selection.

▶ design/theme-switching.mp4 — 20 seconds of the same panel through Catppuccin, Nord, Catppuccin Latte and Rose Pine. Only the light and dark variants of the green ramp swap, following the theme's own lightness.

With the panel open, a theme change crossfades rather than jumps: the whole palette eases across together over about 400ms. Set HABITGRID_THEME_TRANSITION=none in the shell's environment if you would rather it switched instantly.

If you would rather the squares matched your accent, set "palette": "theme":

{ "palette": "theme" }

It builds a four-step ramp from your accent with an explicit lightness spine, and moves the focus ring and the +1 button to neutral so they stay legible against it. "github" (the default) and "theme" are the only two values, on purpose — see design/DESIGN.md §14.

Configuration

~/.config/habitgrid/config.json. Every field is optional; delete the file and everything falls back to the defaults below.

{
  "sources": [
    { "backend": "obsidian-markdown", "file": "~/Obsidian/MyVault/Habits.md" },
    { "backend": "github-contributions", "username": "your-handle" }
  ],
  "palette": "github",
  "sync": { "pullIntervalSeconds": 30, "pushMode": "immediate" }
}

Chips appear with the loggable habits first, then the other sources in the order you listed them, with a divider between groups.

{
  "backend": "obsidian-markdown",
  "backends": {
    "obsidian-markdown": { "file": "~/Obsidian/MyVault/Habits.md" }
  }
}

This is read as a one-element sources list. Nothing needs changing unless you want a second source.

Bundled backend options:

A malformed config never stops the plugin: it falls back to defaults and says why. bin/habitgrid config prints exactly what took effect.

Command line

The panel runs bin/habitgrid and nothing else, so anything it can do, you can do from a terminal or a script:

bin/habitgrid list                 # every habit: today, streak, best, total
bin/habitgrid list --year 2025     # the same, for one year
bin/habitgrid increment water      # +1 for today, prints the new count
bin/habitgrid decrement water      # -1, floored at zero
bin/habitgrid add stretch          # define a new habit, prints its name
bin/habitgrid add water --goal 8   # ...with a target of 8 times a day
bin/habitgrid goal water 12        # retarget an existing habit
bin/habitgrid goal water 0         # ...or take its goal off, keeping the habit
bin/habitgrid rename water hydrate # rename it, log lines and all
bin/habitgrid remove stretch       # undefine it again, keeping its history
bin/habitgrid view --habit water   # the exact JSON the panel renders
bin/habitgrid config               # the effective configuration
bin/habitgrid backend              # which executable would run

--date YYYY-MM-DD pretends it is another day, --config PATH uses another config file, and --source N picks which source a habit belongs to when two of them use the same name. add takes --source N too, for a config with more than one writable source; without it the habit goes to the first source that says it can hold one. remove, goal and rename are the other way round: they go to the source that has the habit, and say so when no source does.

Writing your own backend

A backend is an executable implementing two verbs — list and increment — plus any of five optional ones it has an answer for. Point backend at its absolute path and it is in charge of everything the panel shows.

<backend> list

Print one JSON object on stdout and exit 0:

{
  "canIncrement": true,
  "canAdd": true,
  "canRemove": true,
  "canSetGoal": true,
  "canRename": true,
  "years": [2026, 2025, 2024],
  "habits": [
    {
      "name": "water",
      "label": "water",
      "goal": 8,
      "today": 5,
      "history": { "2026-08-21": 5, "2026-08-20": 8, "2026-08-18": 3 }
    }
  ]
}

<backend> list --year YYYY

The same output, restricted to that calendar year. A backend that ignores the flag still works — the panel windows whatever it gets — but honouring it keeps the payload small.

history is what the graph, the hover values and the streaks are made of, so report at least HABITGRID_HISTORY_DAYS days back from today. A backend that returns less still works; the graph is just emptier.

Chips appear in the order you print them, and the first habit is selected when the panel opens.

<backend> increment <name>

Add 1 to that habit for today, print the single updated habit object — the same shape as one element of habits — and exit 0:

{ "name": "water", "goal": 8, "today": 6, "history": { "2026-08-21": 6 } }

<backend> decrement <name> (optional)

The same, one lower, floored at zero. Backends that do not implement it exit non-zero and the panel reports that; nothing else breaks.

<backend> add <name> [--goal N] (optional)

Define a habit that does not exist yet — no counts — and print the new habit object, the same shape as one element of habits:

{ "name": "stretch", "goal": null, "today": 0, "history": {} }

--goal N is passed only when the user asked for one, so a backend that predates goals still handles a plain add. N arrives as text, unvalidated: you are the one storing it, so you are the one who decides what a goal may be.

Only offered to backends whose list says "canAdd": true. Refuse anything you cannot store, non-zero and on stderr, rather than storing an approximation of it: the reason is shown beside the field the user is still typing in, so "habit 'water' is already defined" is a useful answer and "invalid" is not. The bundled markdown backend refuses an empty name, a name containing : or | (SPEC forbids both), a habit it already has under any capitalisation, and a goal that is not a positive whole number. Note that the case-folding is a rule about creating a habit, not about reading one: everything that parses the file matches names exactly, because every log line ever written did too.

<backend> set-goal <name> <goal> (optional)

Change the daily goal of a habit that exists, and print the updated habit object:

{ "name": "water", "goal": 12, "today": 5, "history": { "2026-08-21": 5 } }

<goal> arrives as text, unvalidated, exactly like add --goal. Two spellings mean the same thing and both are yours to honour: 0 and an empty string mean "take the goal away" — the habit stays, with its history, and goes back to being levelled against its own typical day. This is the one place 0 is a request rather than a mistake, which is why add --goal 0 is refused with "a goal of 0 is the same as no goal — leave it out" and set-goal water 0 simply does it.

Only offered to backends whose list says "canSetGoal": true. Refuse a habit you do not have, and a goal you cannot store, non-zero and on stderr; the reason appears beside the field the user is still typing in.

The bundled markdown backend rewrites only the | goal: N on the habit's definition line, so the name keeps the exact spelling, casing and spacing the user gave it, and every log line written against that spelling still matches. A habit's position in the list never changes either: retargeting is not deleting and re-adding.

<backend> rename <name> <new-name> (optional)

Give a habit that exists another name, and print the updated habit object, under the name it now has:

{ "name": "hydrate", "goal": 8, "today": 5, "history": { "2026-08-21": 5 } }

The history must follow the name. That is the whole operation, and it is what tells it apart from remove-and-recreate, which deliberately leaves the old counts where they are. A backend that can rewrite a habit's name but cannot carry its past along must not advertise canRename: half a rename splits one habit into two that no client can rejoin, and the panel would have no way to know it had happened.

Only offered to backends whose list says "canRename": true. Refuse a habit you do not have, a name you cannot store, and a name another habit already owns — naming the spelling that exists, as add does — non-zero and on stderr; the reason appears beside the field the user is still typing in. A rename to the name the habit already has is a no-op rather than an error: an editor prefilled with the current name and submitted unchanged is how people look at things.

The bundled markdown backend rewrites the name's bytes on the definition line and on every log line that carried it, in every date section, later duplicates included — and nothing else, so the goal's own spacing, the counts and the bullets all survive. It refuses a rename when the habit is defined twice over (a sync conflict): renaming around the duplicate would leave one copy holding the entire history and promote the other to a habit with none. A rename that only changes capitalisation is allowed, since a habit cannot collide with itself.

<backend> remove <name> (optional)

Undefine a habit that exists, and print the name that is now gone:

{ "name": "stretch", "removed": true }

Only offered to backends whose list says "canRemove": true. What happens to the history is yours to decide, and to say in your docs. The bundled markdown backend keeps every logged count and removes only the ## Definitions line, so re-adding the name restores the whole grid — which is what makes the panel's one-key delete a small enough decision to take without a dialog. A backend that genuinely destroys data should say so loudly somewhere the user will read it before pressing d.

Refuse a habit you do not have, non-zero and on stderr; the panel shows the reason rather than pretending something was deleted.

Errors

Exit non-zero with one human-readable line on stderr. The panel shows that line instead of the graph; it does not crash or blank. Unparseable stdout is reported the same way.

What the backend is told

Configuration arrives in the environment, so a backend in any language can read it without an argument parser:

Option keys become variable names by upper-casing and splitting camelCase: file → HABITGRID_OPT_FILE, apiToken → HABITGRID_OPT_API_TOKEN, base-url → HABITGRID_OPT_BASE_URL. Strings and numbers arrive as text, booleans as true/false, arrays and objects as compact JSON.

The backend inherits the shell's environment, must not need a terminal, and has 15 seconds to answer.

A complete backend

tests/fixtures/fake-backend is a conforming backend in bash that has never heard of markdown — the test suite uses it to prove the panel works against any implementation. Copy it as a starting point.

How the colours are decided

The colour of a square is the only thing the graph encodes, so it is worth knowing the rule:

level 0        count is zero
level 1..4     clamp(ceil(4 × count / reference), 1, 4)

reference =    the habit's goal, when it has one
               otherwise the 75th percentile of its active days

So with a goal, level 4 means you met it. Without one, a typical day for that habit is level 4 — which is why a GitHub calendar with one 300-commit afternoon still shows an ordinary week as green rather than as a faint smear.

Streaks count consecutive days with any activity, ending today, or ending yesterday when today is still empty — an unlogged morning is not a broken streak.

Layout

The QML is deliberately thin: it renders JSON and shells out. Almost every rule worth testing lives in Python. The one thing the panel decides for itself — how a keypress answers before the file has caught up with it — is tested in QML, headlessly, in tests/qml/.

Tests

./tests/run              # everything
./tests/run markdown     # only suites whose name matches

No display, no network, no real habit file: the shell suites run against a throwaway $HOME under /tmp, the GitHub suite parses a fixture, and the QML is type-checked against the real shell modules when Qt's qmllint is present.

motion_test.sh goes further and runs the panel: Qt's own test runner drives the real Panel.qml and ContributionGraph.qml offscreen, with Quickshell's Process replaced by a habitgrid that keeps the file in memory, so the write queue, the burst gate and both halves of the change gesture are exercised at real animation speeds. It skips itself where Qt 6's qmltestrunner is missing.

License

MIT. See LICENSE.
